Features:
HP: 1/3HP-3HP
Pole: 2P
Frame: 56J
Rolled Steel
NEMA design: B
Service Factor: 1.15
Insulation Class: F (UL approved)
Enclosure: ODP
IP Class: IP23
CSA&CUS certified
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional 56 Frame Dripproof Three-Phase Jet Pump Motor Suppliers and 56 Frame Dripproof Three-Phase Jet Pump Motor company with rich industry experience. We can make "tailor-made" 56 Frame Dripproof Three-Phase Jet Pump Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem 56 Frame Dripproof Three-Phase Jet Pump Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
HZ |
ENCL. |
S.F |
Full Load AMPS |
WGT. |
|
1/3 |
3600 |
56J |
D56J 1/3M2A |
230/460 |
60 |
ODP |
1.15 |
1.7/0.85 |
18 |
|
3600 |
56J |
D56J 1/3M2D |
575 |
60 |
ODP |
1.15 |
0.68 |
18 |
|
|
1/2 |
3600 |
56J |
D56J 1/2M2A |
230/460 |
60 |
ODP |
1.15 |
2.0/1.0 |
23 |
|
3600 |
56J |
D56J 1/2M2D |
575 |
60 |
ODP |
1.15 |
0.80 |
23 |
|
|
3/4 |
3600 |
56J |
D56J 3/4M2A |
230/460 |
60 |
ODP |
1.15 |
2.6/1.3 |
23.5 |
|
3600 |
56J |
D56J 3/4M2D |
575 |
60 |
ODP |
1.15 |
1.05 |
23.5 |
|
|
1 |
3600 |
56J |
D56J 1M2A |
230/460 |
60 |
ODP |
1.15 |
3.4/1.7 |
24 |
|
3600 |
56J |
D56J 1M2D |
575 |
60 |
ODP |
1.15 |
1.36 |
24 |
|
|
1.5 |
3600 |
56J |
D56J 1.5M2A |
230/460 |
60 |
ODP |
1.15 |
4.4/2.2 |
29 |
|
3600 |
56J |
D56C 1.5M2D |
575 |
60 |
ODP |
1.15 |
1.76 |
29 |
|
|
2 |
3600 |
56J |
D56J 2M2A |
230/460 |
60 |
ODP |
1.15 |
5.1/2.85 |
33 |
|
3600 |
56J |
D56J 2M2D |
575 |
60 |
ODP |
1.15 |
2.28 |
33 |
|
|
3 |
3600 |
56J |
D56J 3M2A |
230/460 |
60 |
ODP |
1.15 |
7.8/3.9 |
38 |
|
3600 |
56J |
D56J 3M2D |
575 |
60 |
ODP |
1.15 |
3.12 |
38 |

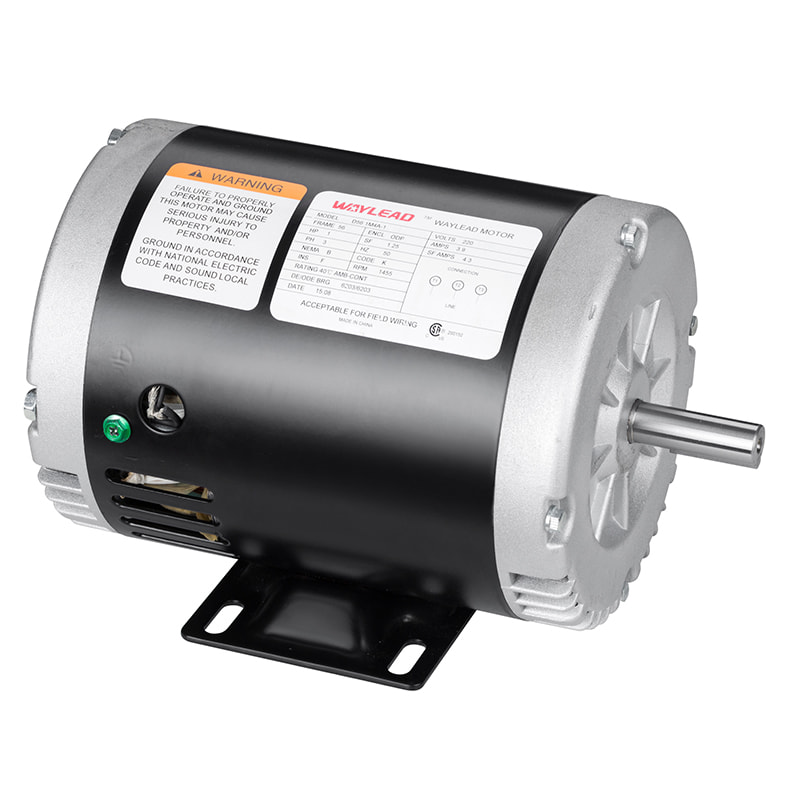

The 56 Frame Dripproof Three-Phase Jet Pump Motor is designed for high-efficiency fluid movement applications in industrial, agricultural, and commercial settings. Unlike standard single-phase motors, this three-phase model ensures smoother operation, reduced electrical stress, and enhanced durability under continuous use. Its dripproof enclosure (IP23) provides protection against falling liquids and solid particles, making it suitable for environments where moisture or incidental splashing may occur. With a power range from 1/3HP to 3HP and a rolled steel frame construction, the motor offers robust performance and longevity. Compliant with NEMA Design B standards and featuring a service factor of 1.15, it delivers reliable overload capacity. Additionally, its UL-approved Class F insulation ensures thermal resilience, while CSA&CUS certifications guarantee adherence to North American safety and performance benchmarks.
Features and Benefits:
Wide Power Range: Supports power options from 1/3HP to 3HP, adapting to diverse pump load requirements.
High-Efficiency Three-Phase Design: Provides smooth starting, low vibration, and higher efficiency, suitable for continuous-duty jet pump systems.
Drip-Proof Construction (IP23): The enclosure protects against vertical dripping water and small solid objects, extending motor life in humid environments.
Rugged Frame: The 56J rolled steel frame ensures mechanical strength and heat dissipation, suitable for high-load conditions.
High-Performance Insulation: Class F insulation (UL certified) withstands high temperature rise, enhancing motor reliability in harsh conditions.
NEMA B Design: Provides standard starting torque and current characteristics, compatible with most pump equipment.
High Service Factor: A service factor of 1.15 allows temporary overload operation without damaging the motor.
Certification Guarantee: CSA and CUS certifications ensure compliance with North American market safety and energy efficiency standards.
Typical Applications:
Suitable for industrial water circulation, agricultural irrigation, deep well blowout pumps, cooling systems, and commercial building water supply. It is particularly well-suited for pump drive applications requiring three-phase power.
