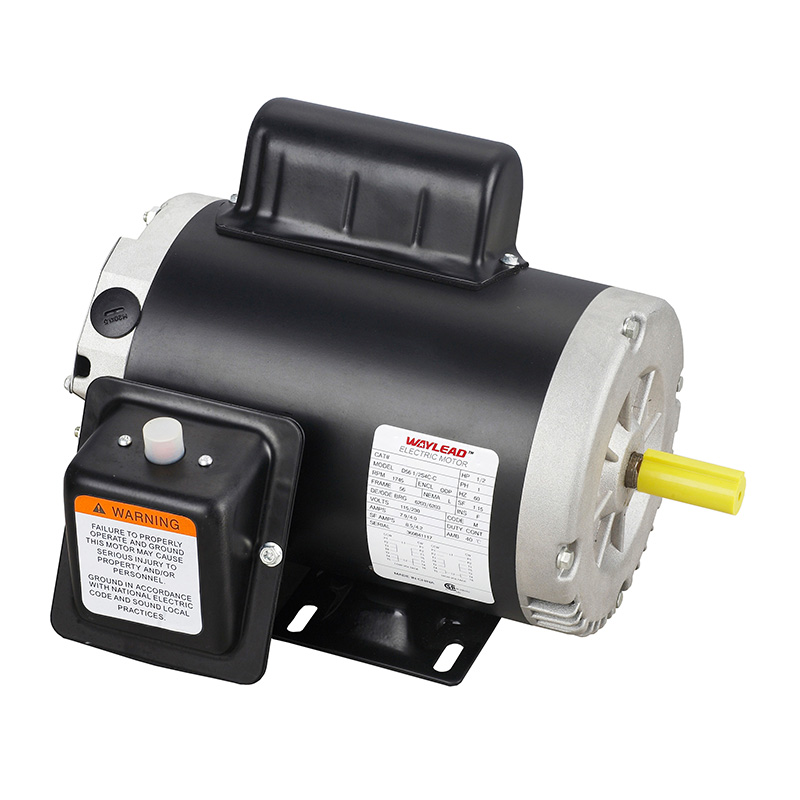

Features:
HP: 1/3HP-3HP
Pole: 2P, 4P
Capacitor Run
Frame: 56, 140T
Rolled steel, C-Face Kit
NEMA design: N
Service factor: 1.15
Insulation Class: F(UL approved)
Enclosure: ODP
IP Class: IP23
CSA&CUS,UL certified
Accept Auto Thermal Protector
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional Drippoof Single-Phase Capacitor Run Motor Suppliers and Drippoof Single-Phase Capacitor Run Motor company with rich industry experience. We can make "tailor-made" Drippoof Single-Phase Capacitor Run Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem Drippoof Single-Phase Capacitor Run Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
HZ |
ENCL. |
S.F |
Full Load AMPS |
WGT. |
|
1/3 |
3600 |
56 |
D56 1/3S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
47/2.2-2.5 |
17 |
|
1800 |
56 |
D56 1/3S4C-V |
115/208-230 |
60 |
ODP |
1.15 |
4.3/2.1-2.3 |
17 |
|
|
1/2 |
3600 |
56 |
D56 1/2S2C-V |
115/208-230 |
60 |
ODP |
1.15 |
5.9/2.9-3.1 |
18 |
|
1800 |
56 |
D56 1/2S4C-Y |
115/208-230 |
60 |
ODP |
1.15 |
5.8/2.8-3.0 |
20 |
|
|
3/4 |
3600 |
56 |
D56 3/4S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
8.1/4.2-4.1 |
22 |
|
1800 |
56 |
D56 3/4S4C-Y |
115/208-230 |
60 |
ODP |
1.15 |
8.1/4.0-4.2 |
25 |
|
|
1 |
3600 |
56 |
D56 1S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
12/6.4-5.8 |
24 |
|
3600 |
143T |
D143T1S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
11.5/6.4-5.8 |
25 |
|
|
3600 |
143T |
D143T1S2A-Y |
208-230/460 |
60 |
ODP |
1.15 |
5.8-5.4/2.6 |
24 |
|
|
1800 |
56 |
D56 1S4C-Y |
115/208-230 |
60 |
ODP |
1.15 |
11.5/6.0-5.7 |
36 |
|
|
1800 |
143T |
D143T1S4C-Y |
115/208-230 |
60 |
ODP |
1.15 |
11.5/6.0-5.7 |
37 |
|
|
1800 |
143T |
D143T1S4A-Y |
208-230/460 |
60 |
ODP |
1.15 |
4.8-5.3/27 |
36 |
|
|
1.5 |
3600 |
56 |
D56 1.5S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
14.5/7.8-7.2 |
34 |
|
3600 |
145T |
D145T1.5S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
14.5/8.0-7.6 |
32 |
|
|
3600 |
145T |
D145T1.5S2A-Y |
208-230/460 |
60 |
ODP |
1.15 |
7.5-7.0/3.4 |
31 |
|
|
1800 |
56 |
D56 1.5S4C-Y |
115/208-230 |
60 |
ODP |
1.15 |
15.5/8.1-7.6 |
42 |
|
|
1800 |
145T |
D145T1.5S4C-Y |
115/208-230 |
60 |
ODP |
1.15 |
15.5/8.1-7.6 |
43 |
|
|
1800 |
145T |
D145T1.5S4A-Y |
208-230/460 |
60 |
ODP |
1.15 |
7.1-67/3.4 |
42 |
|
|
2 |
3600 |
56 |
D56 2S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
18/10.1-9.2 |
41 |
|
3600 |
145T |
D145T2S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
18/10.2-9.4 |
42 |
|
|
3600 |
145T |
D145T2S2A-Y |
208-230/460 |
60 |
ODP |
1.15 |
9.8-9.1/4.5 |
41 |
|
|
1800 |
56 |
D56 2S4C-V |
115/208-230 |
60 |
ODP |
1.15 |
19.0/10-9.3 |
42 |
|
|
1800 |
145T |
D145T2S4C-V |
115/208-230 |
60 |
ODP |
1.15 |
19.0/10-9.3 |
43 |
|
|
1800 |
145T |
D145T2S4A-Y |
208-230/460 |
60 |
ODP |
1.15 |
9.8-9.1/4.5 |
42 |
|
|
3 |
3600 |
56 |
D56 3S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
25/14.2-13 |
49 |
|
3600 |
145T |
D145T 3S2C-Y |
115/208-230 |
60 |
ODP |
1.15 |
25/14.2-13 |
50 |
|
|
3600 |
145T |
D145T3S2A-Y |
208-230/460 |
60 |
ODP |
1.15 |
14-12.5/6.5 |
49 |
How to ensure that the voltage and frequency of DRIPPROOF SINGLE-PHASE CAPACITOR RUN MOTOR match the power supply system?
It is very important to ensure that the voltage and frequency of the DRIPPROOF SINGLE-PHASE CAPACITOR RUN MOTOR match the power supply system, because mismatched voltage and frequency may cause motor performance degradation, overheating, or even damage. Here are some key steps and considerations to ensure voltage and frequency match:
Check out the motor specifications:
First, check the motor's technical specifications or nameplate to determine the motor's rated voltage and rated frequency. This information is the basis for selecting the correct power supply.
Understand the power supply system:
Understand the voltage and frequency of the existing power supply system. This can usually be determined by reviewing the electrical system's documentation, asking the local power company, or taking actual measurements.
Matching power supply:
Choose a power supply that matches the rated voltage and frequency of the motor. If the voltage or frequency of the power supply system does not match the motor requirements, a transformer or frequency converter may be required to adjust the power supply parameters.
Installation and configuration:
When installing the motor, make sure the power cord is properly connected to the motor's power terminals and there are no incorrect connections or short circuits.
If transformers or frequency converters are used, these devices should be configured correctly to output a voltage and frequency that matches the motor.
Tested and verified:
After the motor is installed, use tools such as a voltmeter and frequency meter to test the actual operating voltage and frequency of the motor.
Make sure the test results match the motor's rated voltage and frequency and that the motor operates properly.
Regular inspection and maintenance:
Regularly inspect and maintain the power supply system and motor to ensure stable operation.
If large voltage or frequency fluctuations are found, timely measures should be taken to solve the problem to avoid damage to the motor.
Consult a professional:
If you are unsure or have doubts about the voltage and frequency matching of a motor, the advice of the motor manufacturer or a professional electrical engineer should be sought.
In short, ensuring that the voltage and frequency of the DRIPPROOF SINGLE-PHASE CAPACITOR RUN MOTOR matches the power supply system is the key to the normal operation of the motor and extending its service life.
