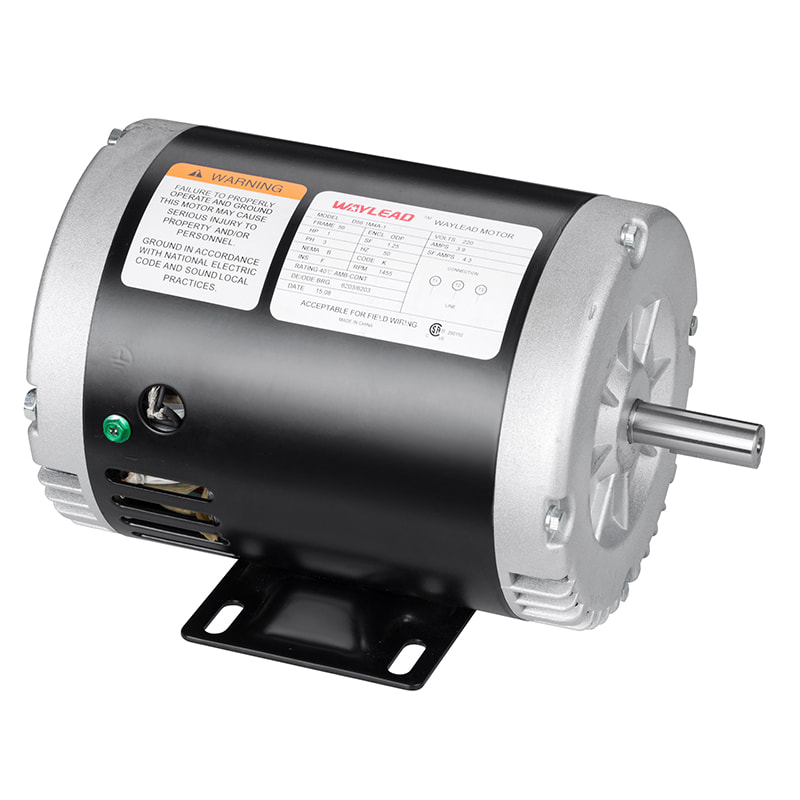

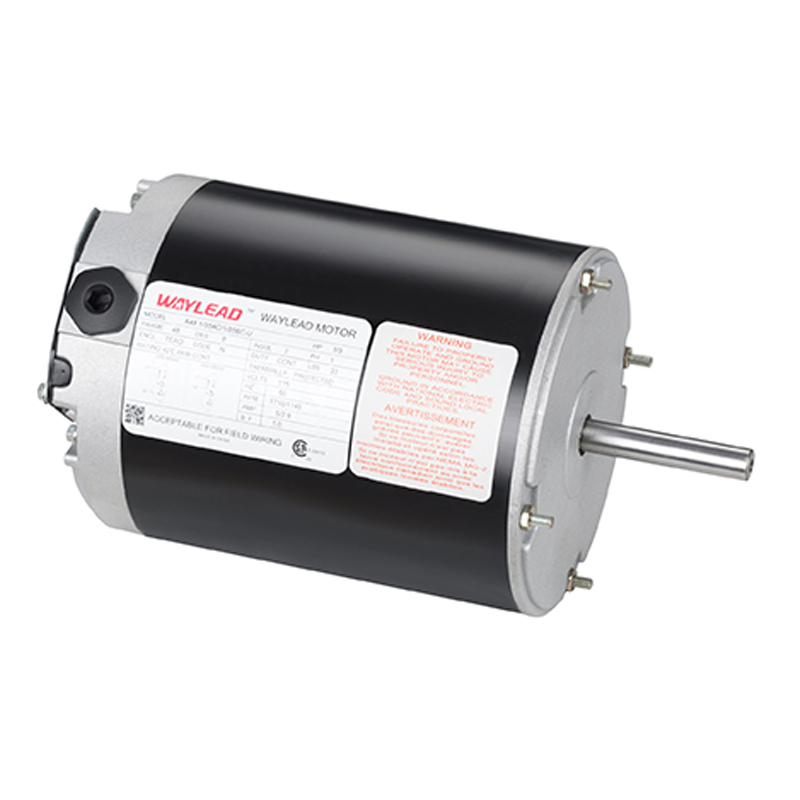

Features:
HP: 1/4HP-3/4HP
Pole: 4P
Frame: 48、56
Rolled steel
Resistance Start
NEMA design: N
NEMA service factor: 1.0, 1.15, 1.35
Insulation Class: F( UL approved)
Enclosure: ODP
IP Class: IP23
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional Resistance Start Motor Suppliers and Resistance Start Motor company with rich industry experience. We can make "tailor-made" Resistance Start Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem Resistance Start Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
| HP | RPM | NEMA FRAME |
Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. LBS. |
| 1/4 | 1800 | 48 | D481/4S4C-U | 115 | 60 | ODP | 1.0 | 4.16 | 12 |
| 1800 | 48 | D481/4S4C-U-1 | 115 | 60 | ODP | 1.35 | 4.16 | 12 | |
| 1800 | 56C | D56C1/4S4A-U | 208-230 | 50 | ODP | 1.15 | 2.08-2.16 | 22 | |
| 1/3 | 1800 | 48 | D481/3S4C-U | 115 | 60 | ODP | 1.0 | 5.11 | 13 |
| 1/2 | 1800 | 48 | D483/2S4C-U | 115 | 60 | ODP | 1.0 | 6.96 | 14 |
| 3/4 | 1800 | 48 | D483/4S4C-U | 115 | 60 | ODP | 1.0 | 9.38 | 16 |
In what fields or applications is RESISTANCE START MOTOR more common?
RESISTANCE START MOTORs are common in many fields and applications. Here are some of the main areas and applications:
Industrial production lines: In industrial production lines that require frequent starts and stops, RESISTANCE START MOTOR is often used to drive conveyor belts, pumps, fans and other mechanical equipment. It can generate high starting torque in a short time and adapt to the rapidly changing needs of the production line.
Refrigeration and air conditioning equipment: RESISTANCE START MOTOR is commonly used in refrigeration compressors and air conditioning fans. During the starting phase, the motor needs to overcome the load of the compressor, and the resistance starting motor can provide sufficient torque to ensure smooth starting of the compressor.
Agricultural machinery and equipment: In the agricultural field, RESISTANCE START MOTOR is used to drive various agricultural machinery and equipment, such as irrigation pumps, harvesters, tractors, etc. These devices usually work under complex and changing environmental conditions and require good starting performance of the motor.
Pumps and Compressors: RESISTANCE START MOTOR is a common choice in pump and compressor applications requiring high starting torque. They ensure that pumps and compressors can overcome loads when starting up and run smoothly.
Elevators and lifts: In elevator and lift systems, RESISTANCE START MOTOR is used to drive the lifting motion of the elevator. These systems require motors with the ability to start quickly under heavy loads to ensure the safe transportation of passengers and cargo.
It should be noted that with the advancement of technology and changes in application requirements, the application fields of RESISTANCE START MOTOR are also constantly expanding. At the same time, other types of motors may gradually replace resistance-start motors in some applications, so choosing the most suitable motor type is crucial in practical applications.
