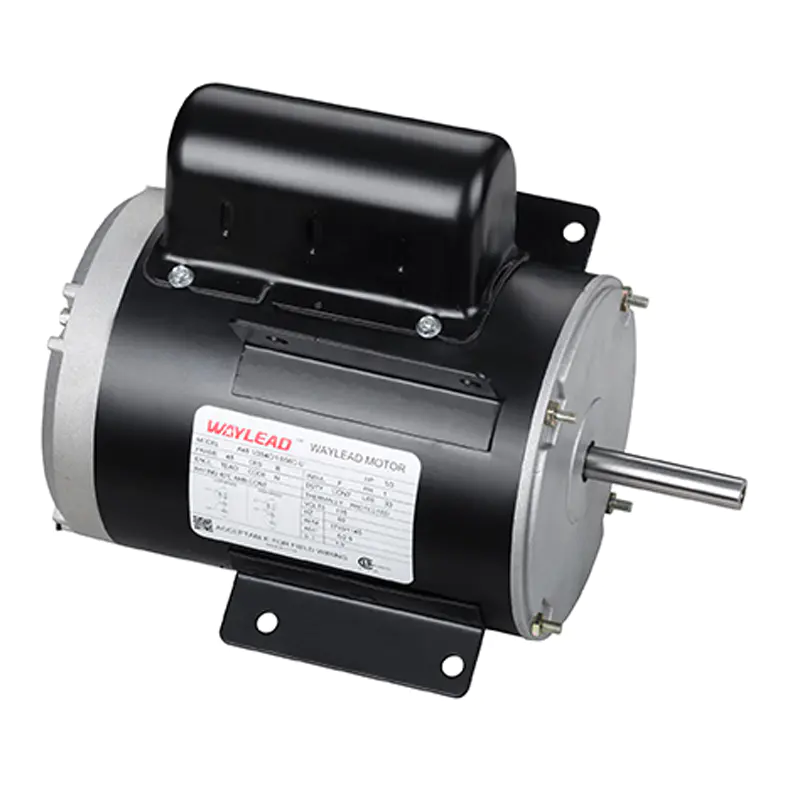

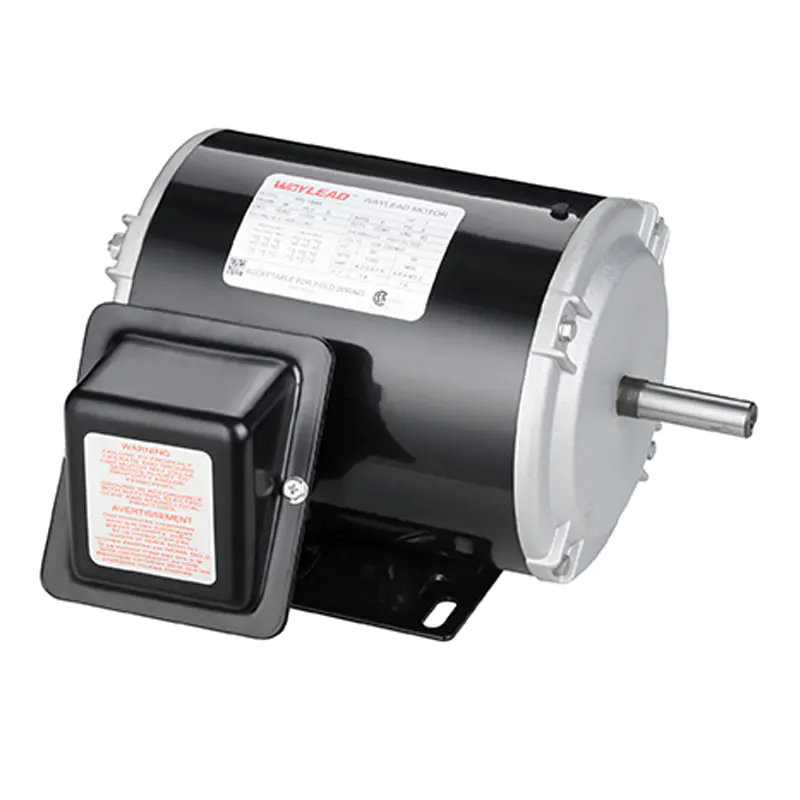

TEAO 48、56 Fan Motor

TEAO 48、56 Fan Motor


HP: 1/10HP-1.5HP

Pole: 4P, 6P, 8P

Frame: 48, 56

Rolled steel

NEMA design: N

NEMA service factor: 1.0, 1.4

Insulation Class: F( UL approved)

Enclosure: TEAO

IP Class: IP44, IP55

Accept Auto Thermal Protector

CSA&CUS,UL certified

Contact Us


Company Advantage

1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.

2. Cixi Waylead is a professional Fan Motor Manufacturers and custom Fan Motor suppliers with rich industry experience. We can make "tailor-made" TEAO 48、56 Fan Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.

3. All our oem TEAO 48、56 Fan Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.

4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!


Industry Knowledge Extension

How to install FAN MOTOR to ensure its stable operation?

Installing FAN MOTOR to ensure its stable operation is an important process that requires following certain steps and precautions. Here are some key installation steps and considerations:
Prepare Tools and Materials: Before you begin installation, make sure you have all the necessary tools and materials ready, such as wrenches, Torx drivers, etc., as well as mounting brackets or fixings that may be needed.
Inspect FAN MOTOR: Before installation, carefully inspect the FAN MOTOR for damage or defects, and make sure its specifications and models meet your needs.
Choose a suitable installation location: Choose a clean, dry, well-ventilated location to install FAN MOTOR. Make sure the installation location is away from any obstructions that may prevent the fan from rotating.
Install brackets or fixtures: Install appropriate brackets or fixtures according to FAN MOTOR's specifications and installation requirements. Make sure the bracket or fixture is stable and reliable and can withstand the weight of the FAN MOTOR and the vibration during operation.
Correctly connect the power supply and circuits: Follow the wiring diagram or instruction manual of FAN MOTOR to correctly connect the power supply and circuits. Be careful not to connect the wires incorrectly or short-circuit, and make sure the power supply voltage matches the rated voltage of the FAN MOTOR.
Adjust the position and angle of the FAN MOTOR: After ensuring that the FAN MOTOR is installed securely, adjust its position and angle so that the fan can rotate normally and achieve the best cooling effect.
Conduct a trial run: After the installation is complete, conduct a trial run to check whether the FAN MOTOR is working properly. Observe whether the fan rotates smoothly and whether there is any abnormal noise or vibration.
In addition to the above steps, there are some important considerations:
During installation, be sure to follow the manufacturer's installation guide or instructions to ensure correct and safe installation of FAN MOTOR.
If you have any questions or uncertainties about the installation process, it is recommended to consult a professional or seek technical support.
During installation and operation, pay attention to safe operation to avoid electric shock or other accidents.
By following these steps and precautions, you can ensure the correct installation of your FAN MOTOR, ensuring that it operates stably and performs optimally.
