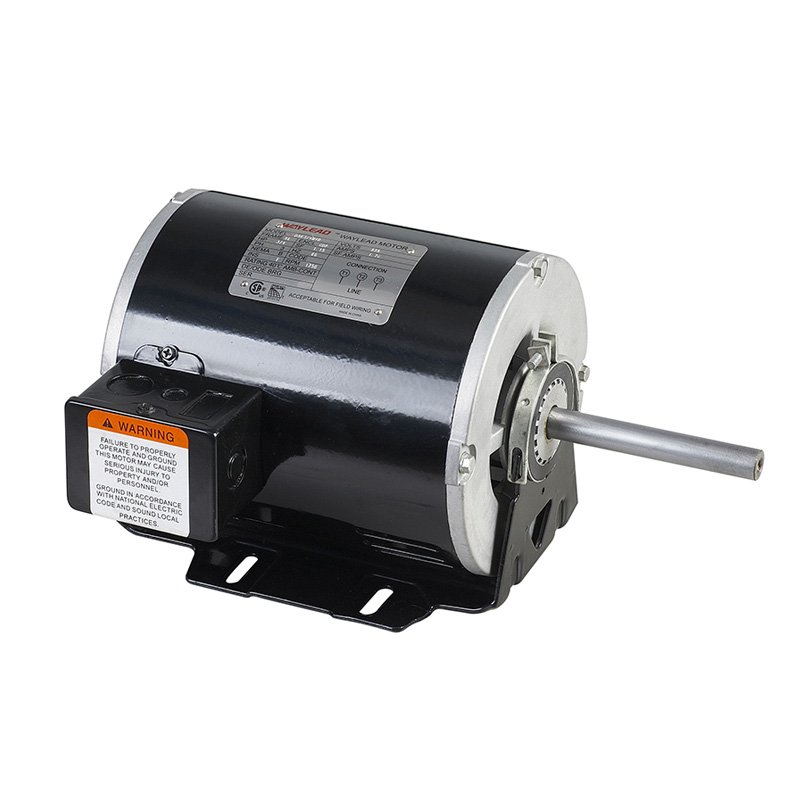

Features:
HP: 1/4HP-2HP
Pole: 4P
Capacitor Run
Frame: 48, 56
Rolled Steel
NEMA design N
Service Factor: 1.0, 1.15, 1.25, 1.35
Insulation Class: F (UL approved)
Enclosure: ODP
IP Class: IP23
CSA&CUS,UL certified
Accept Manual or Auto Thermal Protector

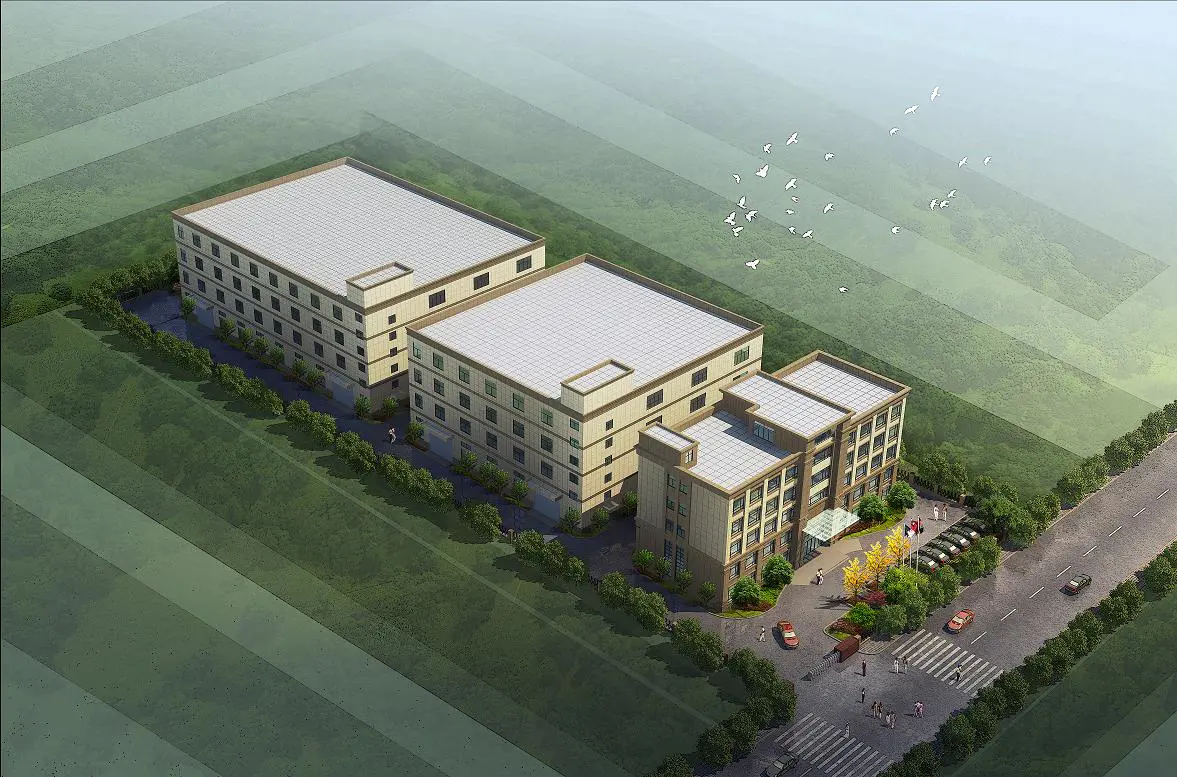

1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional Resilient Base Motor Manufacturers and custom Resilient Base Motor suppliers with rich industry experience. We can make "tailor-made" Resilient Base Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem Resilient Base Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
HZ |
ENCL. |
BRGS. |
S.F |
Full Load AMPS |
WGT. |
|
1/4 |
1800 |
48 |
D48 1/4S4C-Y |
115/230 |
60 |
ODP |
SLEEVE |
1.0 |
2.7/1.4 |
14 |
|
1800 |
48 |
D48 1/4S4C-Y |
115/230 |
60 |
ODP |
BALL |
1.35 |
2.8/1.4 |
14 |
|
|
1/3 |
1800 |
48 |
D48 1/3S4C-Y |
115/208-230 |
60 |
ODP |
SLEEVE |
1.35 |
3.9/2.15 - 1.95 |
16 |
|
1800 |
56 |
D56 1/3S4C-Y |
115/230 |
60 |
ODP |
BALL |
1.35 |
3.6/1.8 |
18 |
|
|
1/2 |
1800 |
48 |
D48 1/2S4C-V |
115/230 |
60 |
ODP |
SLEEVE |
1.0 |
4.7/2.45 |
19 |
|
1800 |
56 |
D56 1/2S4C-Y |
115/230 |
60 |
ODP |
BALL |
1.25 |
4.6/2.3 |
20 |
|
|
3/4 |
1800 |
56 |
D56 3/4S4C-Y |
115/230 |
60 |
ODP |
BALL |
1.15 |
7.5/3.9 |
23 |
|
1 |
1800 |
56 |
D56 1S4C-Y |
115/230 |
60 |
ODP |
BALL |
1.15 |
9.5/4.7 |
38 |
|
1.5 |
1800 |
56 |
D56 1.5S4C-Y |
115/230 |
60 |
ODP |
BALL |
1.15 |
14.2/7.2 |
45 |
|
2 |
1800 |
56 |
D56 2S4C-Y |
115/230 |
60 |
ODP |
BALL |
1.15 |
17.2/8.7 |
47 |
Which parts of RESILIENT BASE MOTOR require lubrication and maintenance?
The lubrication and maintenance of RESILIENT BASE MOTOR is crucial to ensure its normal operation and extend its service life. The following are some parts that may require lubrication and maintenance:
Bearings: Bearings are common parts in motors that require lubrication. They support the rotating parts and withstand friction during operation. Bearing lubrication reduces wear, reduces noise, and increases the efficiency of your motor. Regular lubrication and maintenance of bearings using appropriate lubricating oil or grease is necessary.
Gears and transmission mechanisms: If the RESILIENT BASE MOTOR contains gears or transmission mechanisms, these parts also require lubrication and maintenance. Gears and transmission mechanisms will generate friction and wear during operation. Proper lubrication can reduce friction losses, improve transmission efficiency, and prevent premature wear of gears.
Other sliding contact surfaces: There may be other sliding contact surfaces in the motor, such as guide rails, sliding bearings, etc. Lubrication of these parts can reduce friction and wear and improve the reliability and stability of the motor.
When performing lubrication maintenance, you need to pay attention to the following points:
Choose appropriate lubricating materials: Choose appropriate lubricating oil or grease according to the use environment and requirements of the motor. Ensure that the lubricating material has good lubrication performance, anti-oxidation performance and high temperature resistance.
Regularly replace lubricating materials: Lubricating materials will gradually age and fail during use, so they need to be replaced regularly. Establish a lubricating material replacement cycle based on the motor's usage and manufacturer's recommendations.
Clean the lubrication part: Before lubrication, it is necessary to clean the lubrication part to remove old lubricating materials and impurities to ensure the lubrication effect.
