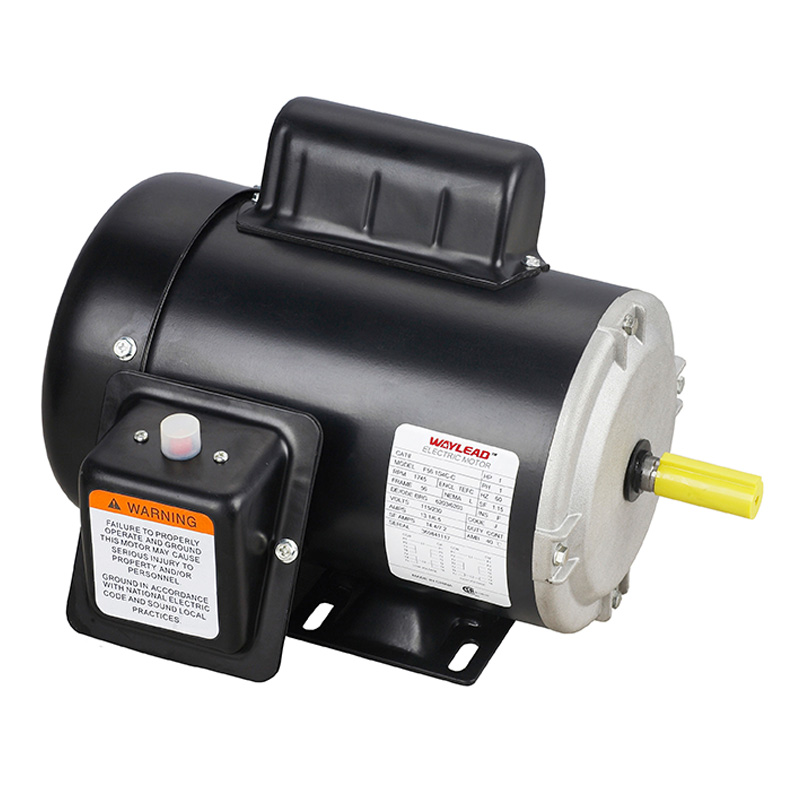

Features:
HP: 1/3HP - 2HP
Pole: 2P, 4P
Capacitor Start
Frame: 56, 140T
Rolled steel
NEMA design: N
Service factor: 1.15
Insulation Class： F(UL approved)
Enclosure: TEFC
IP Class: IP44
CSA&CUS,UL certified
Accept Manual or Auto Thermal Protector.
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional Totally Enclosed Single-Phase Capacitor Start Motor Suppliers and Totally Enclosed Single-Phase Capacitor Start Motor company with rich industry experience. We can make "tailor-made" Totally Enclosed Single-Phase Capacitor Start Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem Totally Enclosed Single-Phase Capacitor Start Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
HZ |
ENCL. |
S.F |
Full Load AMPS |
WGT. |
|
1/3 |
3600 |
56 |
F561/3S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
6.0/2.8-3.0 |
26 |
|
1800 |
56 |
F56 1/3S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
5.7/2.7-2.8 |
27 |
|
|
1/2 |
3600 |
56 |
F561/2S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
7.7/3.8-3.9 |
26 |
|
1800 |
56 |
F56 1/2S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
7.9/3.8-4.0 |
28 |
|
|
3/4 |
3600 |
56 |
F56 3/4S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
9.8/4.94.8 |
30 |
|
1800 |
56 |
F563/4S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
10.3/5.3-5.2 |
32 |
|
|
1
|
3600 |
56 |
F561S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
11.8/6.1-5.9 |
31 |
|
3600 |
143T |
F143T1S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
11.8/6.1-5.9 |
32 |
|
|
3600 |
143T |
F143T1S2A-C |
208-230/460 |
60 |
TEFC |
1.15 |
6.2-5.6/2.8 |
31 |
|
|
1800 |
56 |
F56 1S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
13/6.6-6 |
44 |
|
|
1800 |
143T |
F143T1S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
13/6.6-6.5 |
45 |
|
|
1800 |
143T |
F143T1S4A-C |
208-230/460 |
60 |
TEFC |
1.15 |
6.7-6.0/3.1 |
44 |
|
|
1.5
|
3600 |
56 |
F56 1.5S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
15.3/8.4-7.7 |
33 |
|
3600 |
145T |
F145T1.5S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
15.3/8.4-7.7 |
34 |
|
|
3600 |
145T |
F145T1.5S2A-C |
208-230/460 |
60 |
TEFC |
1.15 |
8.0-7.2/3.6 |
33 |
|
|
1800 |
56 |
F56 1.5S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
17.8/9.3-8.9 |
49 |
|
|
1800 |
145T |
F145T1.5S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
15.3/8.4-7.7 |
50 |
|
|
1800 |
145T |
F145T1.5S4A-C |
208-230/460 |
60 |
TEFC |
1.15 |
8.7-7.9/4.0 |
49 |
|
|
2
|
3600 |
56 |
F56 2S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
18.6/11-9.9 |
48 |
|
3600 |
145T |
F145T2S2C-C |
115/208-230 |
60 |
TEFC |
1.15 |
18.6/11-9.9 |
49 |
|
|
3600 |
145T |
F145T2S2A-C |
208-230/460 |
60 |
TEFC |
1.15 |
10.5-0.3/4.6 |
48 |
|
|
1800 |
56 |
F56 2S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
21.7/11.5-10.8 |
51 |
|
|
1800 |
145T |
F145T2S4C-C |
115/208-230 |
60 |
TEFC |
1.15 |
21/11.3-10.8 |
52 |
|
|
1800 |
145T |
F145T2S4A-C |
208-230/460 |
60 |
TEFC |
1.15 |
11.4-10.3/5.2 |
51 |
How to consider TOTALLY ENCLOSED SINGLE-PHASE CAPACITOR START MOTOR motor size and installation requirements?
When considering the sizing and installation requirements for a TOTALLY ENCLOSED SINGLE-PHASE CAPACITOR START MOTOR, the following steps and considerations need to be followed:
1. Determine the installation space:
First, you need to accurately measure the space available where the motor will be installed. This includes the length, width, and height of the motor, as well as whether there are other equipment or obstacles around it. Make sure that the size of the selected motor does not exceed the available space at the installation location.
2. Consider cooling needs:
A fully enclosed motor generates heat during operation, so heat dissipation needs to be considered. Make sure that the motor's heat dissipation vents or heat sinks are not blocked to maintain normal heat dissipation. At the same time, avoid installing the motor in a high temperature or humid environment to avoid affecting its performance and life.
3. Evaluate the installation method:
There are many ways to install electric motors, such as vertical, horizontal, etc. It is necessary to choose the appropriate installation method according to the actual application scenario. At the same time, you also need to consider how the motor is fixed to ensure that the motor can be firmly installed on the equipment or machine.
4. Consider interfaces and connections:
The motor needs to be connected to power supply, control system and other equipment. Therefore, when selecting a motor, you need to consider the type and number of its power interfaces, control interfaces, etc. to ensure compatibility with other equipment. Additionally, consideration needs to be given to how wires or cables are laid out and connected to ensure safety and reliability.
Therefore, when considering the size and installation requirements of the ""TOTALLY ENCLOSED SINGLE-PHASE CAPACITOR START MOTOR"" motor, you need to comprehensively consider the installation space, heat dissipation requirements, installation methods, interface connections. Through careful evaluation and selection, you can ensure that your motor will install smoothly and operate properly."
