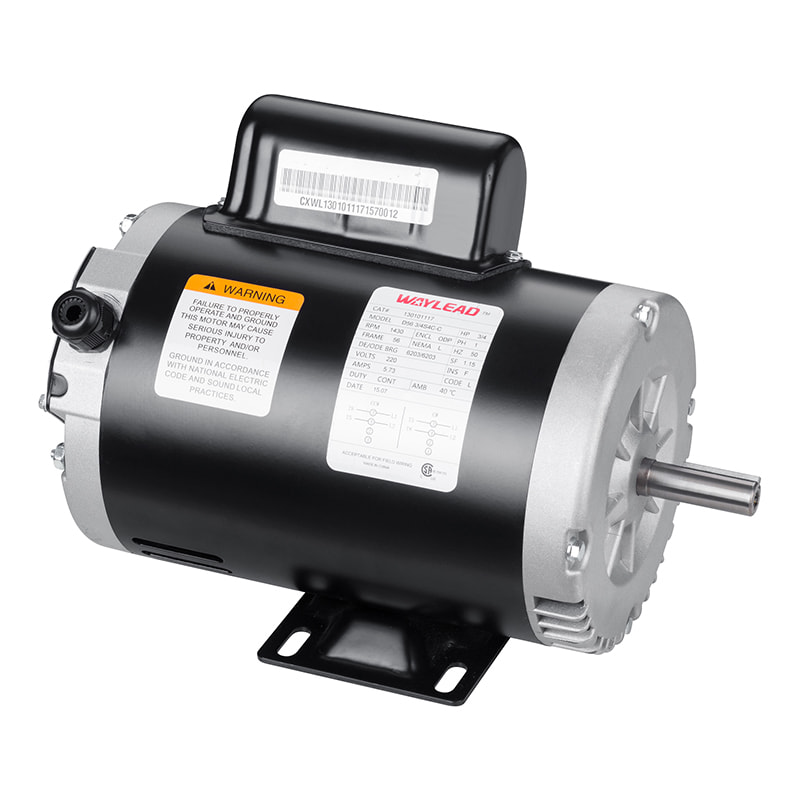

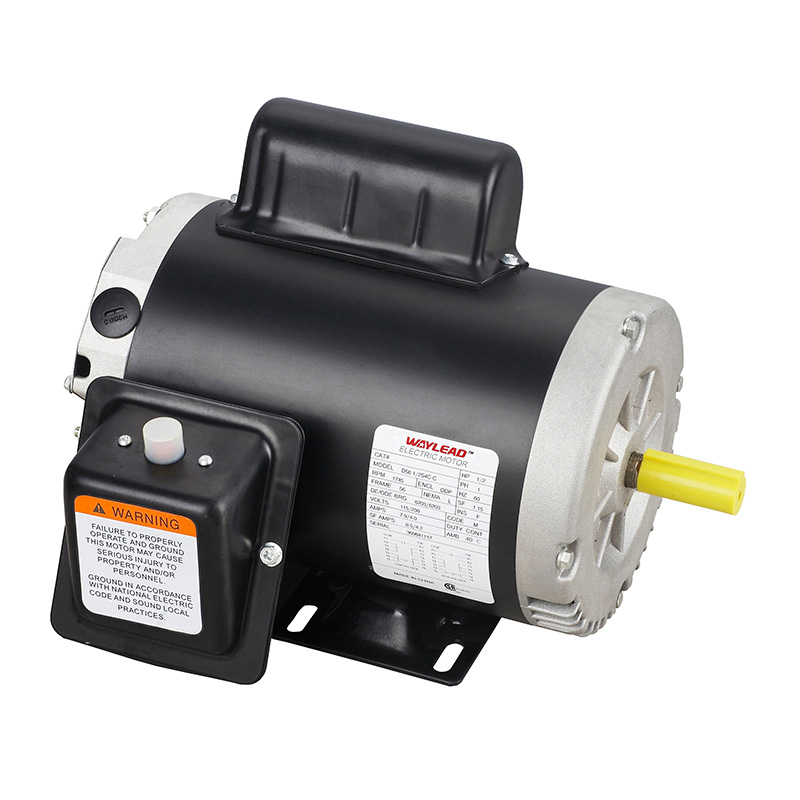

Dripproof Single-Phase Capacitor Start Motor

How does the way the capacitors are connected (series or parallel) affect the startup and operating performance of the "DRIPPROOF SINGLE-PHASE CAPACITOR START MOTOR"?

The way the capacitors are connected (series or parallel) has a significant impact on the starting and operating performance of the "DRIPPROOF SINGLE-PHASE CAPACITOR START MOTOR". The following is a specific analysis:
Series connection:
Starting performance: When capacitors are connected in series, the total capacitance value decreases because the total capacitance of the series capacitors is the reciprocal of the sum of the reciprocals of the capacitance values ​​of each capacitor. This means that when the motor starts, the starting current provided by the capacitor will be relatively small. In some cases, if the capacitance value is too small, it may not be enough to provide sufficient starting torque, causing difficulty in starting the motor or taking too long to start.
Operating Performance: A series connection may reduce the operating efficiency of the motor because a smaller capacitance value may cause the motor to not fully utilize the energy of the power supply when running. In addition, if the capacitor value is improperly selected, it may also cause increased vibration and noise of the motor.
Parallel connection:
Starting performance: When capacitors are connected in parallel, the total capacitance value increases because the total capacitance of parallel capacitors is the sum of the capacitance values ​​of each capacitor. This means that when the motor is started, the capacitor can provide a larger starting current, helping the motor to quickly reach the rated speed. Therefore, a parallel connection usually provides better starting performance.
Running performance: Parallel connection helps the motor maintain stable performance while running. By increasing the capacitance value, the motor's power factor can be optimized and the motor's efficiency improved. In addition, parallel connection can also reduce the temperature rise of the motor and extend the service life of the motor.
Therefore, the capacitor connection method needs to be selected based on the specific needs and load characteristics of the motor. In most cases, parallel connection is usually chosen for better start-up and running performance. However, in some special cases, such as when it is necessary to limit the starting current or adjust the operating characteristics of the motor, series connection or a combination of series and parallel may also be considered.
