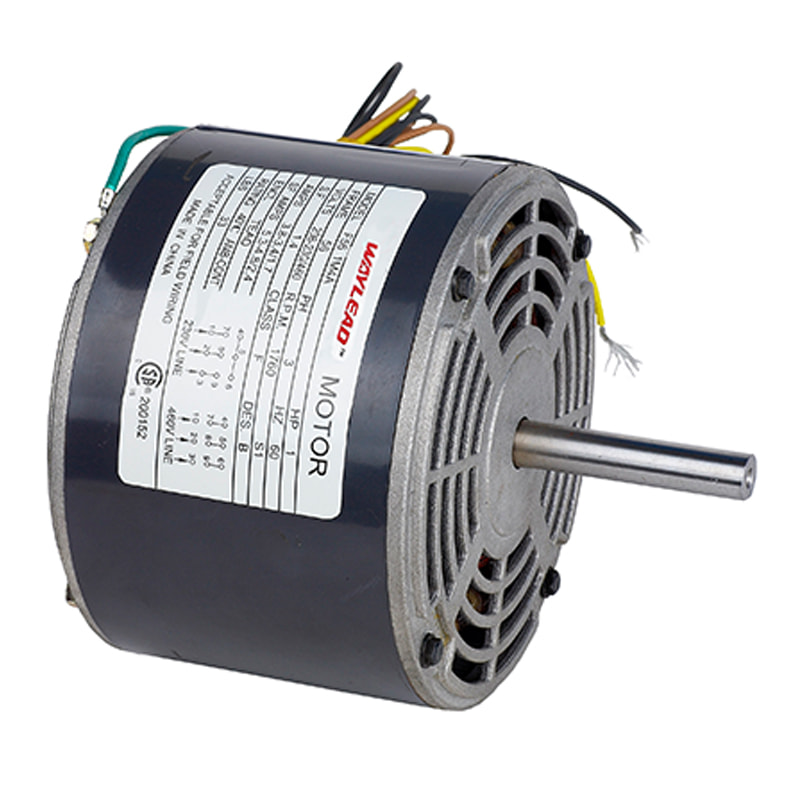

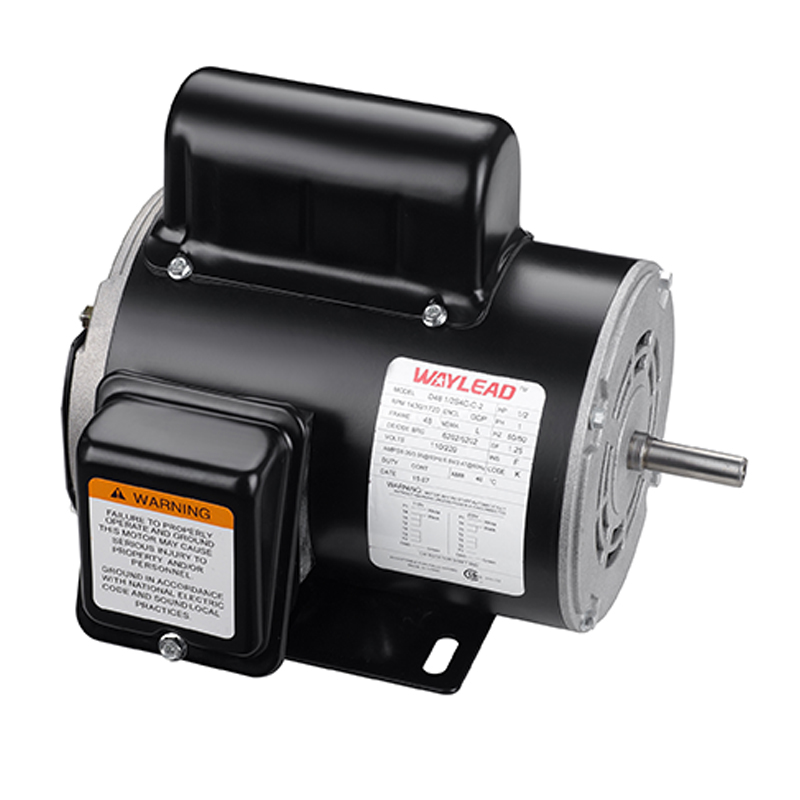

Features:
HP: 1/10HP-1HP
Pole: 4P，6P，8P
Frame: 48
Rolled steel
NEMA design: N
Service factor: 1.0
Insulation Class: F (UL approved)
Enclosure: ODP
IP Class: IP23
CSA&CUS,UL certified
Accept Auto Thermal Protector
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional 48 Frame Dripproof Single-Phase Motor Suppliers and 48 Frame Dripproof Single-Phase Motor company with rich industry experience. We can make "tailor-made" 48 Frame Dripproof Single-Phase Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem 48 Frame Dripproof Single-Phase Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
| HP | RPM | NEMA FRAME |
Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. LBS. |
| 1/10 | 1800 | 48 | D48 1/10S4C | 115/230 | 60 | ODP | 1.0 | 1.25/0.63 | 11 |
| 1/8 | 1800 | 48 | D48 1/8S4C | 115/230 | 60 | ODP | 1.0 | 1.64/0.84 | 11 |
| 1200 | 48 | D48 1/8S6C | 115/230 | 60 | ODP | 1.0 | 1.6/0.8 | 12 | |
| 900 | 48 | D48 1/8S8C-1 | 115/230 | 60 | ODP | 1.0 | 2.1/1.05 | 13 | |
| 1/6 | 1800 | 48 | D48 1/6S4C | 115/230 | 60 | ODP | 1.0 | 2.17/1.09 | 11 |
| 1200 | 48 | D48 1/6S6C | 115/230 | 60 | ODP | 1.0 | 2.12/1.06 | 12 | |
| 900 | 48 | D48 1/6S8C | 115/230 | 60 | ODP | 1.0 | 2.75/1.38 | 13 | |
| 1/5 | 1800 | 48 | D48 1/5S4C | 115/230 | 60 | ODP | 1.0 | 2.2/1.1 | 11 |
| 1200 | 48 | D48 1/5S6C-1 | 115/230 | 60 | ODP | 1.0 | 2.6/1.4 | 12 | |
| 900 | 48 | D48 1/5S8C-1 | 115/230 | 60 | ODP | 1.0 | 2.81/1.41 | 15 | |
| 1/4 | 1800 | 48 | D48 1/4S4C | 115/230 | 60 | ODP | 1.0 | 2.7/1.4 | 11 |
| 1200 | 48 | D48 1/4S6C-1 | 115/230 | 60 | ODP | 1.0 | 3/1.6 | 13 | |
| 900 | 48 | D48 1/4S8C | 115/230 | 60 | ODP | 1.0 | 3.62/1.81 | 15 | |
| 1/3 | 1200 | 48 | D48 1/3S6C | 115/230 | 60 | ODP | 1.0 | 3.6/1.8 | 12 |
| 900 | 48 | D48 1/3S8C | 115/230 | 60 | ODP | 1.0 | 4.17/2.09 | 17 | |
| 1/2 | 1800 | 48 | D48 1/2S4C-1 | 115/230 | 60 | ODP | 1.0 | 4.7/2.45 | 19 |
| 1200 | 48 | D48 1/2S6C | 115/230 | 60 | ODP | 1.0 | 5.1/2.55 | 20 | |
| 900 | 48 | D48 1/2S8C | 115/230 | 60 | ODP | 1.0 | 5.75/2.88 | 31 | |
| 3/4 | 1800 | 48 | D48 3/4S4C | 115/230 | 60 | ODP | 1.0 | 6.73/3.54 | 20 |
| 1200 | 48 | D48 3/4S6C | 115/230 | 60 | ODP | 1.0 | 7.78/3.89 | 22 | |
| 1 | 1800 | 48 | D48 1S4C | 115/230 | 60 | ODP | 1.0 | 9.5/4.95 | 21 |
| 1200 | 48 | D48 1S6C | 115/230 | 60 | ODP | 1.0 | 11/5.5 | 26 |
The 48 Frame Dripproof Single-Phase Motor is an innovative power solution designed for harsh industrial environments. It stands out among similar single-phase motors with its compact 48-frame structure. Compared with conventional open motors, this product adopts a fully enclosed drip-proof (ODP) design. The IP23 protection level can effectively resist liquid dripping and dust intrusion within 60° in the vertical direction, which is particularly suitable for humid and dusty scenes such as food processing and agricultural irrigation. With dual certifications of CSA&CUS and UL, its compatibility in the North American market far exceeds that of competitors that only meet basic standards. The unique thermal protection module can automatically monitor the winding temperature and achieve continuous and stable output with the F-class insulation system, extending the service life by 40% compared to traditional A/B-class insulation motors. As one of the very few NEMA N-type motors that covers the full power range from 1/10HP to 1HP, its modular design can seamlessly adapt to the upgrade needs of various equipment such as conveyors and compressors.
[Detailed explanation of core parameters]
Differentiated technical highlights
► Frame optimization: 48-gauge rolled steel frame (Rolled steel) achieves 18% smaller volume than conventional 56-gauge frame, and power density is increased to 0.25HP/kg
► Environmental protection: IP23 certified anti-drip structure, passed UL 1004-2 standard vertical drip test (3mm/min for 10min without penetration)
► Intelligent protection: Integrated Klixon series automatic reset thermal protector (T1-T5 grades optional), response time <3 seconds
► Energy efficiency upgrade: NEMA Premium® efficiency certification, full load efficiency of 82.5% (1HP working condition)
General performance parameters
Power range: 1/10HP (0.075kW) ~ 1HP (0.75kW) six adjustable gears
Pole configuration: 4-pole (1800rpm) / 6-pole (1200rpm) / 8-pole (900rpm) three-speed selection
Mechanical characteristics: NEMA N-type design, radial load bearing capacity of shaft end up to 110N
Thermal management: Continuous operation winding temperature rise ≤75K (ambient 40℃ benchmark) under 1.0 service factor
Electrical safety: Double insulation system (UL 507 Class F), withstand voltage test passed 2.5kV/1min
Certification system: Complies with CSA C22.2 No.100, UL 2111, NOM-003-SEDE standards
[Application scenarios]
This motor is particularly suitable for medium and low power scenarios that require moisture and dust protection, such as commercial refrigeration equipment (refrigerator compressors), automated packaging line drive units, and water treatment circulation pumps. Its compact size can directly replace old AO2 series motors without modifying the mounting base.
