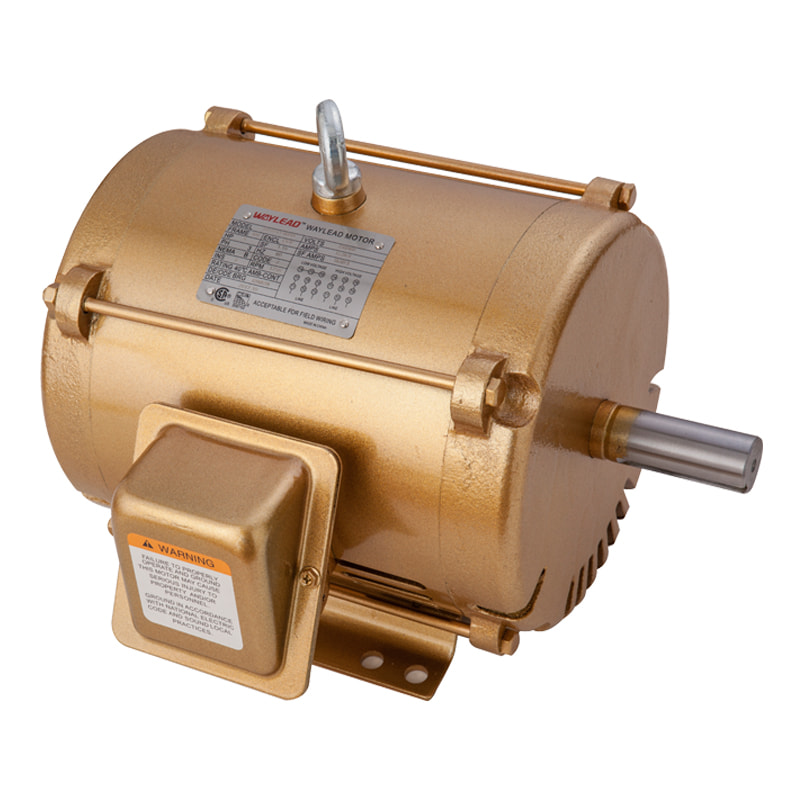

Features:
HP: 1HP-20HP
Pole: 2P, 4P, 6P
Frame: 143T-256T
Rolled steel
NEMA design B
Accept C-face Kit
Service factor: 1.15
Insulation Class: F (UL approved)
Enclosure: ODP
IP Class: IP23
CSA&CUS,UL certified
EPACT(CC) & EEV certified
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional Three-Phase Dripproof High-Efficiency Motor Suppliers and Three-Phase Dripproof High-Efficiency Motor company with rich industry experience. We can make "tailor-made" Three-Phase Dripproof High-Efficiency Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem Three-Phase Dripproof High-Efficiency Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
HZ |
ENCL. |
S.F |
Full Load AMPS |
WGT. |
|
1 |
3600 |
143T |
ED143T1M2A |
2208-230/460 |
60 |
ODP |
1.15 |
3.7-3.4/1.7 |
31.5 |
|
3600 |
143T |
ED143T1M2D |
575 |
60 |
ODP |
1.15 |
1.36 |
31.5 |
|
|
1800 |
143T |
ED143T1M4A |
208-230/460 |
60 |
ODP |
1.15 |
3.5-3.2/1.6 |
40.5 |
|
|
1800 |
143T |
ED143T1M4D |
575 |
60 |
ODP |
1.15 |
1.28 |
40.5 |
|
|
1200 |
145T |
ED145T1M6A |
208-230/460 |
60 |
ODP |
1.15 |
4.2-3.8/1.9 |
40 |
|
|
1200 |
145T |
ED145T1M6D |
575 |
60 |
ODP |
1.15 |
1.52 |
40 |
|
|
1.5 |
3600 |
143T |
ED143T1.5M2A |
208-230/460 |
60 |
ODP |
1.15 |
4.64.2/2.1 |
37 |
|
3600 |
143T |
ED143T1.5M2D |
575 |
60 |
ODP |
1.15 |
1.68 |
37 |
|
|
1800 |
145T |
EO145T1.5M4A |
208-230/460 |
60 |
ODP |
1.15 |
5K6/2.3 |
44 |
|
|
1800 |
145T |
ED145T1.5M4O |
575 |
60 |
ODP |
1.15 |
1.84 |
44 |
|
|
1200 |
182T |
ED182T1.5M6A |
208-230/460 |
60 |
ODP |
1.15 |
5.6-6.0/2.5 |
66.5 |
|
|
1200 |
182T |
ED182T1.5M6O |
575 |
60 |
ODP |
1.15 |
2.0 |
66.5 |
|
|
2 |
3600 |
145T |
ED145T2M2A |
208-230/460 |
60 |
ODP |
1.15 |
5.9-6.472.7 |
37.5 |
|
3600 |
145T |
ED145T2M2D |
575 |
60 |
ODP |
1.15 |
2.16 |
37.5 |
|
|
1800 |
145T |
ED145T2M4A |
208-230/460 |
60 |
ODP |
1.15 |
6.8-6.2Z3.1 |
47.5 |
|
|
1800 |
145T |
ED145T2M4D |
575 |
60 |
ODP |
1.15 |
2.48 |
47.5 |
|
|
1200 |
184T |
ED184T2M6A |
208-230/460 |
60 |
ODP |
1.15 |
6.8-6.2/3.1 |
73 |
|
|
1200 |
184T |
ED184T2M6D |
575 |
60 |
ODP |
1.15 |
2.5 |
73 |
|
|
3 |
3600 |
145T |
ED145T3M2A |
208-230/460 |
60 |
ODP |
1.15 |
8.8-8.0/40 |
41 |
|
3600 |
145T |
ED145T3M2D |
575 |
60 |
ODP |
1.15 |
3.2 |
41 |
|
|
1800 |
182T |
ED182T3M4A |
208-230/460 |
60 |
ODP |
1.15 |
8.8-8.0/4.0 |
78 |
|
|
1800 |
182T |
ED182T3M4G |
220/380 |
60 |
ODP |
1.15 |
8.5M.5 |
78 |
|
|
1800 |
182T |
ED182T3M4D |
575 |
60 |
ODP |
1.15 |
3.2 |
78 |
|
|
1200 |
213T |
ED213T3M6A |
208-230/460 |
60 |
ODP |
1.15 |
9.5-8.6Z4.3 |
103 |
|
|
1200 |
213T |
ED213T3M6D |
575 |
60 |
ODP |
1.15 |
3.5 |
103 |
|
|
5 |
3600 |
182T |
ED182T5M2A |
208-230/460 |
60 |
ODP |
1.15 |
14.1-12.8/6.4 |
73 |
|
3600 |
182T |
ED182T5M2D |
575 |
60 |
ODP |
1.15 |
5.12 |
73 |
|
|
1800 |
184T |
ED184T5M4A |
208-230/460 |
60 |
ODP |
1.15 |
14.3-13.0/6.5 |
85 |
|
|
1800 |
184T |
ED184T5M4G |
220/380 |
60 |
ODP |
1.15 |
13.5/7.3 |
85 |
|
|
1800 |
184T |
ED184T5M4D |
575 |
60 |
ODP |
1.15 |
5.2 |
85 |
|
|
1200 |
215T |
ED215T5M6A |
208-230/460 |
60 |
ODP |
1.15 |
15.6-14.2/7.1 |
112 |
|
|
1200 |
215T |
ED215T5M6D |
575 |
60 |
ODP |
1.15 |
5.7 |
112 |
|
|
7.5 |
3600 |
184T |
ED184T7.5M2A |
208-230/460 |
60 |
ODP |
1.15 |
19.6-17.8/8.9 |
79.5 |
|
3600 |
184T |
ED184T7.5M2D |
575 |
60 |
ODP |
1.15 |
7.12 |
79.5 |
|
|
1800 |
213T |
ED213T7.5M4A |
208-230/460 |
60 |
ODP |
1.15 |
20.9-19.0/9.5 |
120 |
|
|
1800 |
213T |
ED213T7.5M4G |
220/380 |
60 |
ODP |
1.15 |
19.8/10.6 |
120 |
|
|
1800 |
213T |
ED213T7.5M4D |
575 |
60 |
ODP |
1.15 |
7.6 |
120 |
|
|
10 |
3600 |
213T |
ED213T10M2A |
208-230/460 |
60 |
ODP |
1.15 |
27.7-25.2/12.6 |
114 |
|
3600 |
213T |
ED213T10M2D |
575 |
60 |
ODP |
1.15 |
10.0 |
114 |
|
|
1800 |
215T |
ED215T10M4A |
208-230/460 |
60 |
ODP |
1.15 |
27.5-25.0/12.5 |
131 |
|
|
1800 |
215T |
ED215T10M4G |
220/380 |
60 |
ODP |
1.15 |
26.5/14 |
131 |
|
|
1800 |
215T |
ED215T10M4D |
575 |
60 |
ODP |
1.15 |
10 |
131 |
|
|
15 |
3600 |
215T |
ED215T15M2A |
208-230/460 |
60 |
ODP |
1.15 |
37.8-34.4/17.2 |
126 |
|
3600 |
215T |
ED215T15M2D |
575 |
60 |
ODP |
1.15 |
13.8 |
126 |
|
|
1800 |
254T |
ED254T15M4A |
208-230/460 |
60 |
ODP |
1.15 |
41.8-38.0/19.0 |
198 |
|
|
1800 |
254T |
ED254T15M4D |
575 |
60 |
ODP |
1.15 |
15.2 |
198 |
|
|
20 |
1800 |
256T |
ED256T20M4A |
208-230/460 |
60 |
ODP |
1.15 |
56.5-61.4/25.7 |
210 |
|
1800 |
256T |
ED256T20M4D |
575 |
60 |
ODP |
1.15 |
20.6 |
210 |
Three-Phase Dripproof High-Efficiency Motor is designed for industrial and commercial drive applications where stable three-phase power, controlled operating environments, and energy compliance are required. Compared with enclosed fan-cooled motors in the same category, this product uses an Open Drip Proof (ODP) enclosure, allowing effective heat dissipation in clean, dry indoor locations while maintaining protection against limited falling moisture. The motor follows NEMA Design B characteristics, providing predictable starting current and torque behavior that aligns with standard industrial equipment requirements.
With a power range from 1HP to 20HP and multiple pole options (2P, 4P, and 6P), this motor supports a wide range of speed and load demands. The rolled steel frame enhances structural stability, while the insulation system meets Class F standards for thermal performance. Compliance with EPACT (CC) and EEV efficiency regulations ensures alignment with energy-efficiency standards, distinguishing it from non-compliant conventional motors. The motor is suitable for applications requiring consistent operation, standardized mounting options, and certified electrical safety without the need for fully enclosed designs.
| Feature | Dripproof High-Efficiency Motor | TEFC Motor (Same Category) |
|---|---|---|
| Enclosure Type | ODP (IP23) | Totally Enclosed Fan Cooled |
| Cooling Method | Natural airflow | External fan cooling |
| Indoor Suitability | Controlled environments | Wider environment tolerance |
| Energy Compliance | EPACT (CC), EEV | Model dependent |
| Weight | Lower due to open design | Higher due to enclosure |
| Maintenance Accessibility | Direct airflow cooling | Enclosed structure |
Q1: What environments are suitable for this motor?
A: It is designed for clean, dry indoor environments where exposure to dust, oil mist, or direct water spray is limited.
Q2: What does NEMA Design B indicate?
A: NEMA Design B defines standard starting torque and current characteristics suitable for general-purpose industrial loads.
Q3: Can this motor be used with C-face mounted equipment?
A: Yes, the motor accepts a C-face kit, allowing compatibility with pumps, gearboxes, and other direct-coupled equipment.
Q4: What efficiency standards does the motor meet?
A: It complies with EPACT (CC) and EEV efficiency regulations.
Q5: Is the insulation system suitable for continuous operation?
A: The Class F insulation system supports stable thermal performance under continuous operating conditions.
