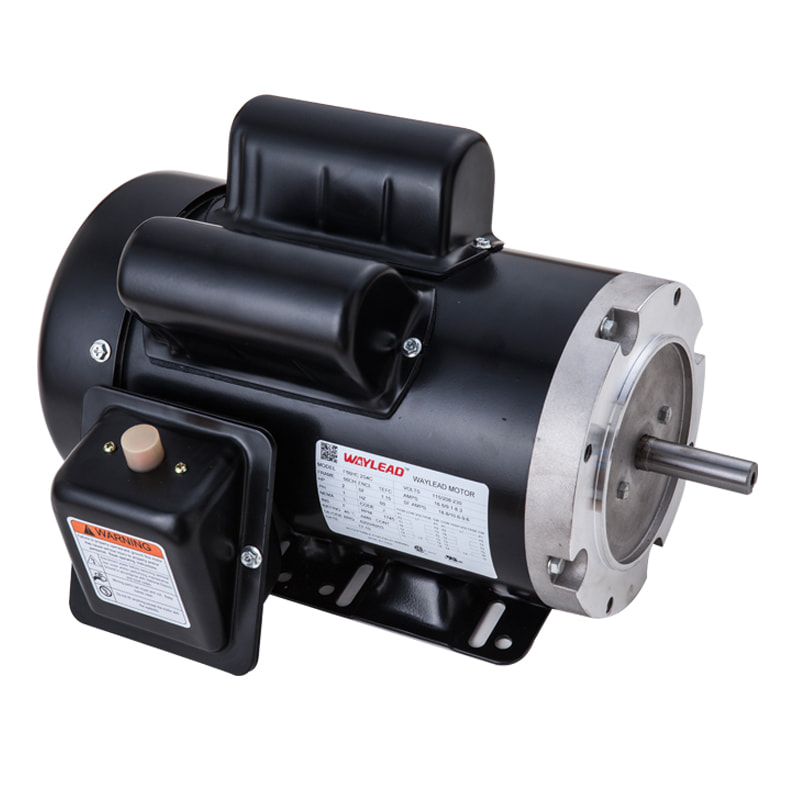

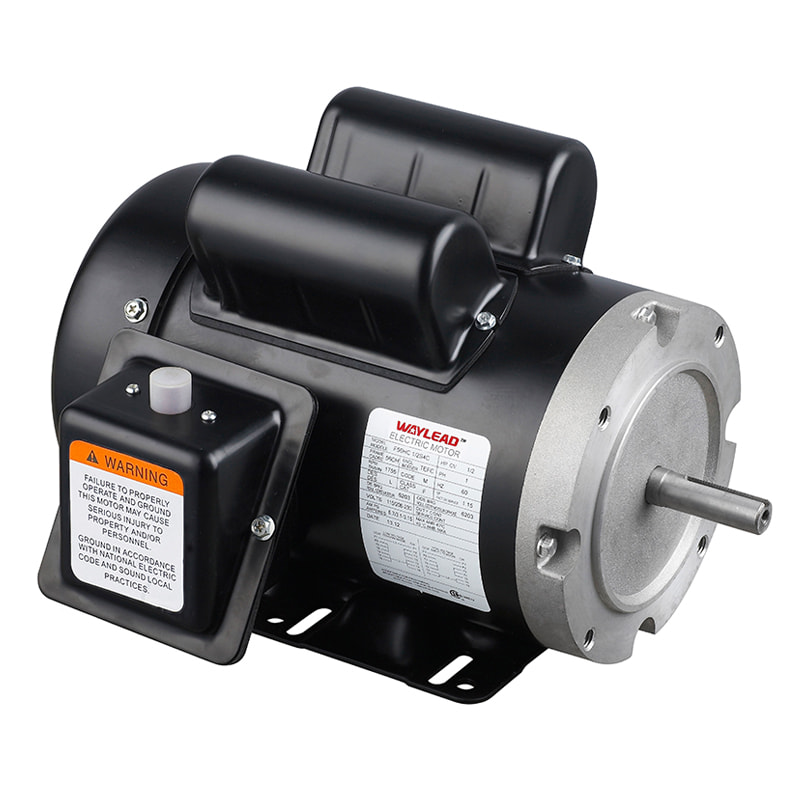

Features:
HP: 1HP-3HP
Pole: 2P, 4P
Frame: 56C, 56HC
Rolled steel
NEMA design: B
Service factor: 1.15
Insulation Class: F (UL approved)
Enclosure: TEFC
IP Class: IP44
CSA&CUS certified
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional Hydraulic Pump Motor Suppliers and Hydraulic Pump Motor company with rich industry experience. We can make "tailor-made" Hydraulic Pump Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem Hydraulic Pump Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
HZ |
PH |
ENCL. |
S.F |
Full Load AMPS |
WGT. |
|
1 |
1800 |
56C |
F56C1S4C |
115/230 |
60 |
1 |
TEFC |
1.15 |
9.2/5.0^.7 |
38 |
|
3600 |
56C |
F56C1S2C |
115/230 |
60 |
1 |
TEFC |
1.15 |
8.3/4.4 |
30 |
|
|
2 |
1800 |
56C |
F56C2S4C |
115/230 |
60 |
1 |
TEFC |
1.15 |
16.5/8.3 |
47 |
|
3600 |
56C |
F56C2S2C |
115/230 |
60 |
1 |
TEFC |
1.15 |
16.5/8.4 |
44 |
|
|
3 |
3600 |
56HC |
F56HC3S2C |
230 |
60 |
1 |
TEFC |
1.15 |
13.0 |
60 |
|
1 |
1800 |
56C |
F56C1M4A |
230/460 |
60 |
3 |
TEFC |
1.15 |
3.4/1.7 |
33 |
|
1800 |
56C |
F56C1M4D |
575 |
60 |
3 |
TEFC |
1.15 |
1.4 |
33 |
|
|
1.5 |
1800 |
56C |
F561.5M4A |
230/460 |
60 |
3 |
TEFC |
1.15 |
5.2/2.6 |
37 |
|
1800 |
56C |
F56C1.5M4D |
575 |
60 |
3 |
TEFC |
1.15 |
2.0 |
37 |
|
|
2 |
1800 |
56C |
F56C2M4A |
230/460 |
60 |
3 |
TEFC |
1.15 |
6.0/3.0 |
40 |
|
1800 |
56C |
F56C2M4D |
575 |
60 |
3 |
TEFC |
1.15 |
2.5 |
40 |
|
|
3600 |
56C |
F56C2M2D |
575 |
60 |
3 |
TEFC |
1.15 |
2.1 |
34 |
|
|
3 |
1800 |
56HC |
F56HC3M4A |
230/460 |
60 |
3 |
TEFC |
1.15 |
9.0/4.5 |
47 |
|
1800 |
56HC |
F56HC3M4D |
575 |
60 |
3 |
TEFC |
1.15 |
3.6 |
47 |
How does the Hydraulic Pump Motor work with other components of the hydraulic system?
How the Hydraulic Pump Motor works with other components of the hydraulic system mainly depends on the design and functional requirements of the system. Here is a detailed explanation of how the Hydraulic Pump Motor works with the other components of the hydraulic system:
Cooperation with fuel tank:
The hydraulic pump motor draws hydraulic oil from the tank and delivers the oil to other parts of the hydraulic system through the action of the pump.
The tank is also usually equipped with a filter to filter the oil entering the pump and protect the pump from contamination.
Cooperation with control valve:
The control valve is a key component in the hydraulic system that regulates the flow direction and flow rate of oil.
The oil pressure generated by the hydraulic pump motor can flow to different actuators (such as hydraulic cylinders and hydraulic motors) through the regulation of the control valve to achieve different actions.
Collaboration with executive agencies:
Hydraulic cylinders and hydraulic motors are actuators in hydraulic systems. They receive oil from the hydraulic pump motor and convert it into mechanical motion.
The oil pressure and flow rate provided by the hydraulic pump motor need to match the needs of the actuator to ensure efficient operation of the system.
Cooperation with pressure sensors and flow sensors:
Hydraulic systems are usually equipped with pressure sensors and flow sensors to monitor oil pressure and flow in the system.
These sensors can provide real-time data to the control system, and the control system can adjust the operating status of the hydraulic pump motor based on these data to maintain system stability and efficiency.
Cooperation with the cooling system:
For hydraulic systems with high power or long-term operation, a cooling system may be required to reduce the oil temperature.
The cooling system usually includes components such as radiators and fans, which work together with the hydraulic pump motor to ensure that the system oil temperature is within the appropriate range.
Cooperation with leak detection systems:
Leak detection systems are used to monitor leaks in hydraulic systems and detect and deal with leak problems in a timely manner.
Once a leak occurs, the leak detection system can send an alert to the control system, which can adjust the operating status of the hydraulic pump motor accordingly to reduce further leakage and damage.
In short, the cooperative work of the Hydraulic Pump Motor and other components of the hydraulic system is a complex and critical process. It is necessary to ensure the matching and coordination between the various components to achieve stable, efficient and reliable operation of the system.
