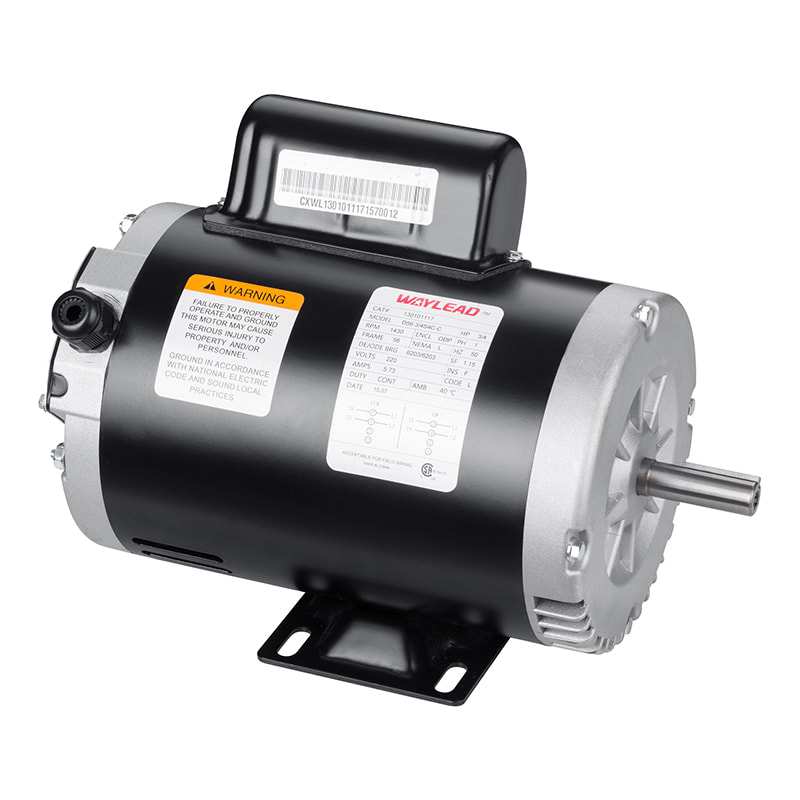

Single Phase Fractional Horsepower Premium Efficiency Motor (Two capacitors)

Single Phase Fractional Horsepower Premium Efficiency Motor (Two capacitors)

Features:

HP: 1/4HP-2HP

Capacitor Start and Capacitor Run

Frame: 48-56

Rolled steel frame

NEMA design N

Service factor. 1.15

Insulation Class F

Enclosure:. ODP

IP Class: IP23;

CSA&CUS,UL certified

EPACT ( CC ) certified

Contact Us

Single Phase Fractional Horsepower Premium Efficiency Motor (Two capacitors) Details

HP

RPM

NEMA
FRAME

Model

Volts

ENCL.

BRGS.

S.F

Full Load AMPS

WGT.
LBS.

1/4

3600

48

SD481/4S2C

115/230

ODP

BALL

1.15

2.31/1.27-1.20

17.0

1800

48

SD481/4S4C

115/230

ODP

BALL

1.15

2.40/1.31-1.20

18.5

3600

56

SD561/4S2C

115/230

ODP

BALL

1.15

2.50/1.38-1.30

20.0

1800

56

SD561/4S4C

115/230

ODP

BALL

1.15

2.42/1.38-1.25

22.0

1/3

3600

48

SD481/3S2C

115/230

ODP

BALL

1.15

2.45/1.35-1.22

17.5

1800

48

SD481/3S4C

115/230

ODP

BALL

1.15

3.10/1.70-1.55

19.0

3600

56

SD561/3S2C

115/230

ODP

BALL

1.15

2.91/1.59-1.46

22.0

1800

56

SD561/3S4C

115/230

ODP

BALL

1.15

2.76/1.63-1.49

23.0

1/2

3600

48

SD481/2S2C

115/230

ODP

BALL

1.15

4.31/2.41-2.20

22.0

1800

48

SD481/2S4C

115/230

ODP

BALL

1.15

4.40/2.41-2.20

24.0

3600

56

SD561/2S2C

115/230

ODP

BALL

1.15

4.90/2.61-2.47

25.0

1800

56

SD56 1/2S4C

115/230

ODP

BALL

1.15

4.27/2.40-2.15

26.0

3/4

3600

48

SD483/4S2C

115/230

ODP

BALL

1.15

6.20/3.40-3.10

24.0

1800

48

SD483/4S4C

115/230

ODP

BALL

1.15

6.30/3.45-3.20

26.0

3600

56

SD56 3/4S2C

115/230

ODP

BALL

1.15

6.58/3.61-3.28

27.0

1800

56

SD563/4S4C

115/230

ODP

BALL

1.15

6.30/3.50/3.20

28.0

1

3600

48

SD481S2C

115/230

ODP

BALL

1.15

7.98/4.374.00

25.0

1800

48

SD481S4C

115/230

ODP

BALL

1.15

7.96/4.364.00

27.0

3600

56

SD561S2C

115/230

ODP

BALL

1.15

8.70/4.804.41

30.0

1800

56

SD561S4C

115/230

ODP

BALL

1.15

8.26/4.62^.10

31.0

1.5

3600

56

SD561.5S2C

115/230

ODP

BALL

1.15

12.19/6.75-6.12

36.0

1800

56

SD56 .5S4C

115/230

ODP

BALL

1.15

11.61/6.64-6.91

37.0

2

3600

56

SD562S2C

115/230

ODP

BALL

1.15

15.35/8.50^7.71

41.0

1800

56

SD562S4C

115/230

ODP

BALL

1.15

16.81/9.23-8.35

44.0

3

3600

56

SD563S2A

208-230

ODP

BALL

1.15

12.40-11.23

40.0
