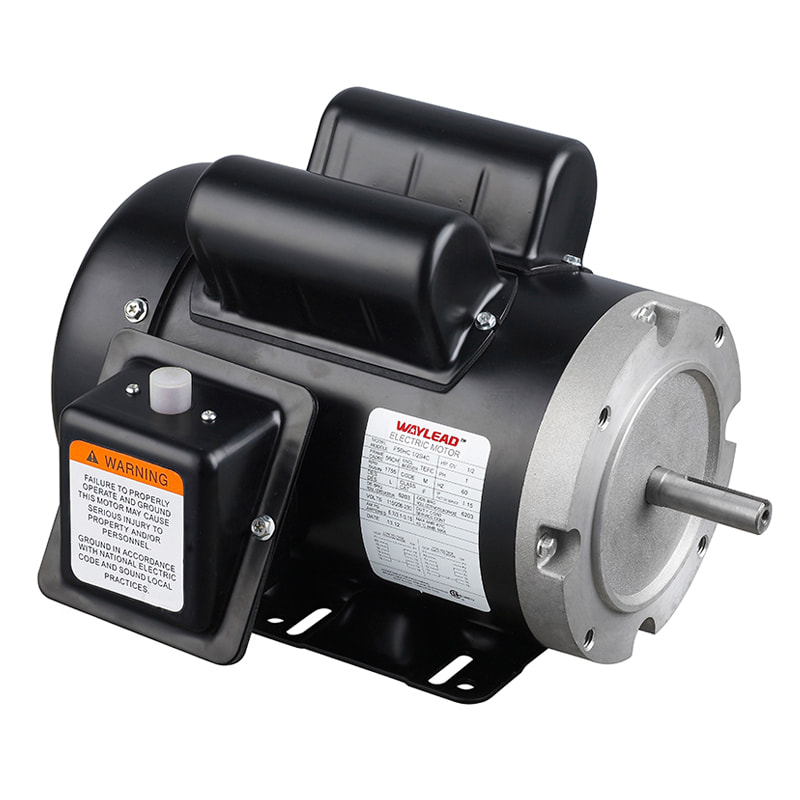

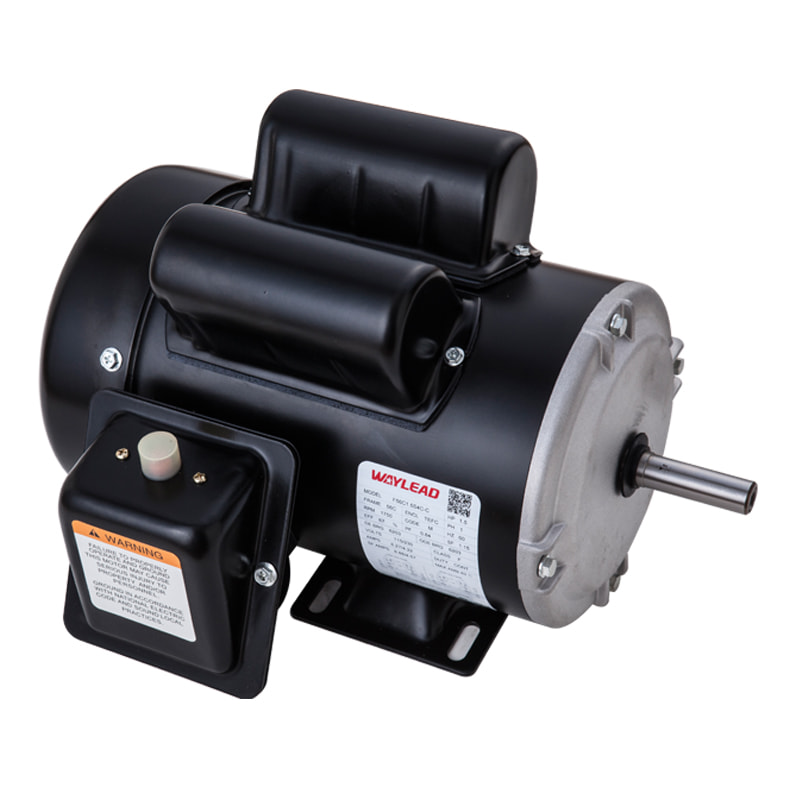

Totally Enclosed Single-Phase Air-Compressor Motor

Totally Enclosed Single-Phase Air-Compressor Motor

Features:

HP: 1-10HP

Pole:2P, 4P

Frame: 56-215T

Start Torque: Tst≥250%

Enclosure: TEFC

IP Class: IP44

Service factor: 1.0,1.15

CSA&CUS certified

Accept Manual Thermal Protector

Contact Us

Totally Enclosed Single-Phase Air-Compressor Motor Details

HP

RPM
60HZ

NEMA
FRAME

Model

Volts

HZ

ENCL.

S.F

Full Load AMPS

WGT.
LBS.

1

3600

56

F56 1S2C

115/208-230

60

TEFC

1.15

9.44/5.06^.9

30

1800

56

F56 1S4C

115/208-230

60

TEFC

1.15

9.7/4.89-5.04

38

1800

143T

F143T1S4C

115/208-230

60

TEFC

1.15

9.3/5.184.78

41

1.5

3600

56

F56 1.5S2C

115/208-230

60

TEFC

1.15

13.14/7.33-6.77

37

1800

56

F56 1.5S4C

115/208-230

60

TEFC

1.15

13.63/7.09-6.66

42

1800

145T

F145T1.5S4C

115/208-230

60

TEFC

1.15

13.3/7.1-6.6

45

3600

145T

F145T1.5S2C

115/208-230

60

TEFC

1.15

13.1/7.0-6.6

41

2

3600

56

F56 2S2C

115/208-230

60

TEFC

1.15

15.3/8.48-7.8

44

1800

56

F56 2S4C

115/208-230

60

TEFC

1.15

16.51/9.08-8.27

47

1800

145T

F145T2S4C

115/208-230

60

TEFC

1.15

16.51/9.08-8.27

50

3600

145T

F145T2S2C

115/208-230

60

TEFC

1.15

16.5/9.2-B.4

48

3

3600

56

F56 3S2C

115/208-230

60

TEFC

1.15

24.0/13-12.3

60

3600

145T

F145T3S2C

115/208-230

60

TEFC

1.15

24.0/13-12.3

67

1800

182T

F182T3S4A

208-230/460

60

TEFC

1.15

14.5-12.55/6.35

88

5

3600

184T

F184T5S2A

208-230/460

60

TEFC

1.15

22.95-19.75/10

95

1800

184T

F184T5S4A

208-230/460

60

TEFC

1.15

23.4-20.3/10.3

96

7.5

1800

213T

F213T7.5S4A

208-230/460

60

TEFC

1.15

33.8-29.5/14.86

153

10

1800

215T

F215T10S4A

208-230/460

60

TEFC

1.0

43-37.8/18.9

190
