1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional Special Motor Suppliers and Special Motor company with rich industry experience. We can make "tailor-made" Special Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem Special Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
PH |
HZ |
ENCL. |
S.F |
Full Load AMPS |
WGT. |
COMMENTS |
|
1/3 |
1800/1200 |
48 |
A481/4S4C-1/10S6C-U |
115 |
1 |
60 |
TEAO |
1.0 |
4.17/2.72 |
13 |
Two-8peed Motor |
|
1800/1200 |
48 |
A481/3S4C-1/8S6C-U |
115 |
1 |
60 |
TEAO |
1.0 |
5/2.9 |
13 |
Two-8peed Motor |
|
|
1/2 |
1800 |
56C |
F56C1/2M4A4 |
400 |
3 |
60 |
TEFC |
1.15 |
1.24 |
24 |
Special Voltage |
|
1 |
1800 |
56C |
D56C3/4S4C-V |
115 |
1 |
60 |
ODP |
1.15 |
8.6 |
24 |
Instant Reversing |
|
1.5 |
1800 |
56C |
F56C1.5M4A-36V |
36 |
3 |
60 |
TEFC |
1.15 |
31.5 |
30 |
36V Motor |
|
3600 |
56 |
N562M2A |
56 |
3 |
60 |
TENV |
1.0 |
6.0/3.5 |
40 |
Cast Iron Motor |
|
|
3600 |
56CZ |
F56CZ2M2A |
460 |
3 |
60 |
TEFC |
1.15 |
2.65 |
35 |
Auto Protector |
|
|
3 |
3600 |
56J |
F56J2M2A |
460 |
3 |
60 |
TEFC |
1.5 |
2.65 |
36 |
Auto Protector |
|
3600 |
184JM |
EF184JM2M2A |
460 |
3 |
60 |
TEFC |
2.5 |
2.75 |
33 |
Auto Protector |
|
|
10 |
3600 |
56HC |
F56HCZ4S2A |
230 |
1 |
60 |
TEFC |
1.15 |
15.5 |
71 |
Special Installation |
|
1800 |
184TC |
F184TC6S4A |
230 |
1 |
60 |
TEFC |
1.0 |
24.25 |
110 |
Special Installation |

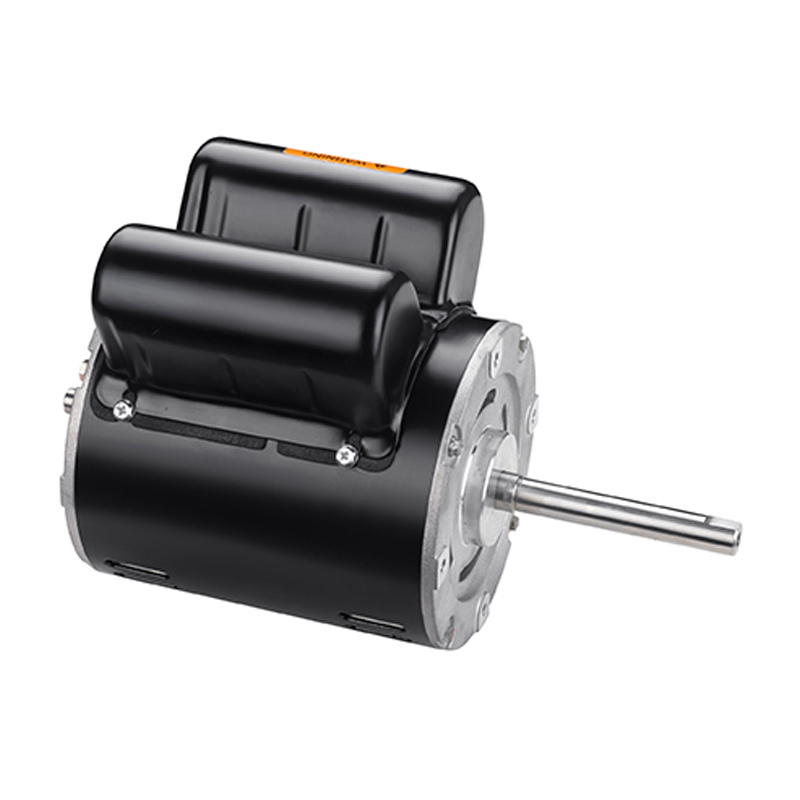

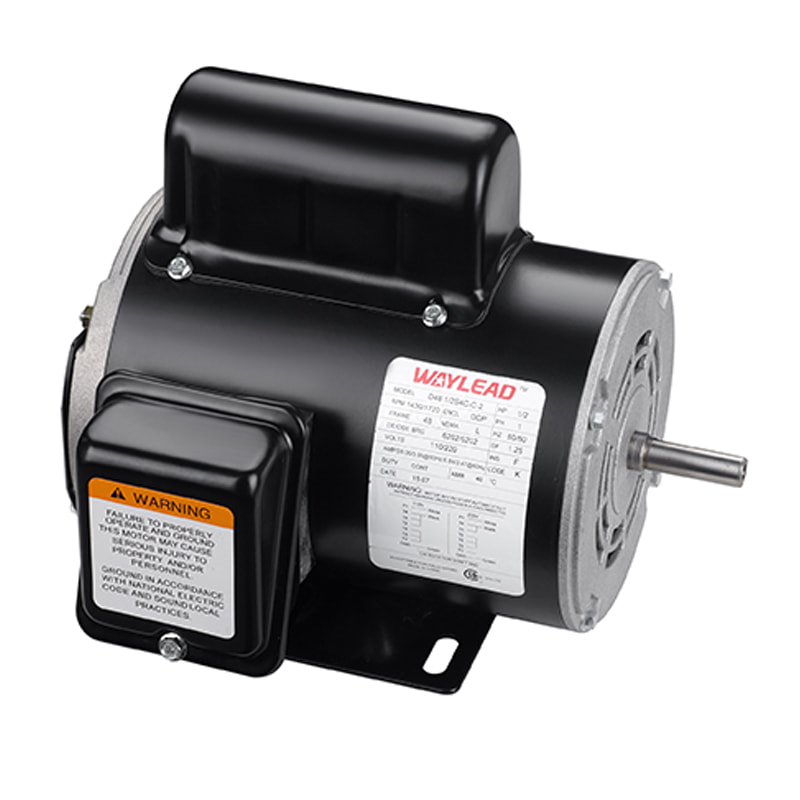

Special Motor is designed to provide reliable performance across diverse industrial applications, including equipment requiring specific voltage, RPM, or enclosure configurations. Unlike standard motors, the Special Motor category includes variations with unique features such as instant reversing capability, multi-speed operation, and specialized installation options. These motors can accommodate single-phase or three-phase power, operate under TEFC, TENV, or ODP enclosures, and meet different service factors and full load amp requirements. The range of Special Motors offers flexibility for systems demanding precise speed, voltage, or environmental protection standards, distinguishing them from conventional motors in the same category.
The Special Motor series encompasses a variety of industrial motors tailored for specialized operational requirements. Key characteristics include:
Voltage and Phase Options: Available in standard and special voltages (115V, 230V, 36V, 400V, 460V), supporting single-phase and three-phase operations.
RPM Variations: Motors cover a wide range of speeds from 1200 RPM to 3600 RPM, including dual-speed motors for flexible equipment operation.
Enclosures: TEFC (Totally Enclosed Fan Cooled), TENV (Totally Enclosed Non-Ventilated), and ODP (Open Drip Proof) enclosures provide protection for different environmental conditions.
Special Functions: Some models offer instant reversing, two-speed operation, or auto-protector features to ensure operational reliability and adaptability.
Applications: Suitable for conveyors, pumps, compressors, HVAC equipment, packaging machines, and other industrial machinery requiring precise performance.
Construction: Cast iron or steel frames, NEMA standard sizes, and robust insulation for long-term durability.
Flexibility: Designed for both standard and non-standard installation requirements, allowing seamless integration into existing industrial systems.
Frequently Asked Questions（FAQ）
Q1: What applications are suitable for Special Motors?
A: They are used in industrial machinery such as conveyors, pumps, compressors, HVAC systems, and packaging equipment where specialized speed, voltage, or protection is required.
Q2: Can Special Motors operate in harsh environments?
A: Yes, models with TEFC, TENV, or ODP enclosures are designed to withstand different environmental conditions including dust, moisture, and high heat.
Q3: Are dual-speed or reversing motors available?
A: Certain models, such as the Two-Speed and Instant Reversing motors, provide these capabilities for adaptable operation.
Q4: How do I select the right Special Motor?
A: Consider HP, RPM, voltage, phase, enclosure type, and special features like auto-protection or multi-speed operation based on your equipment needs.
Q5: Are Special Motors compatible with NEMA standards?
A: Yes, all models conform to NEMA frame standards for interoperability and replacement ease.
