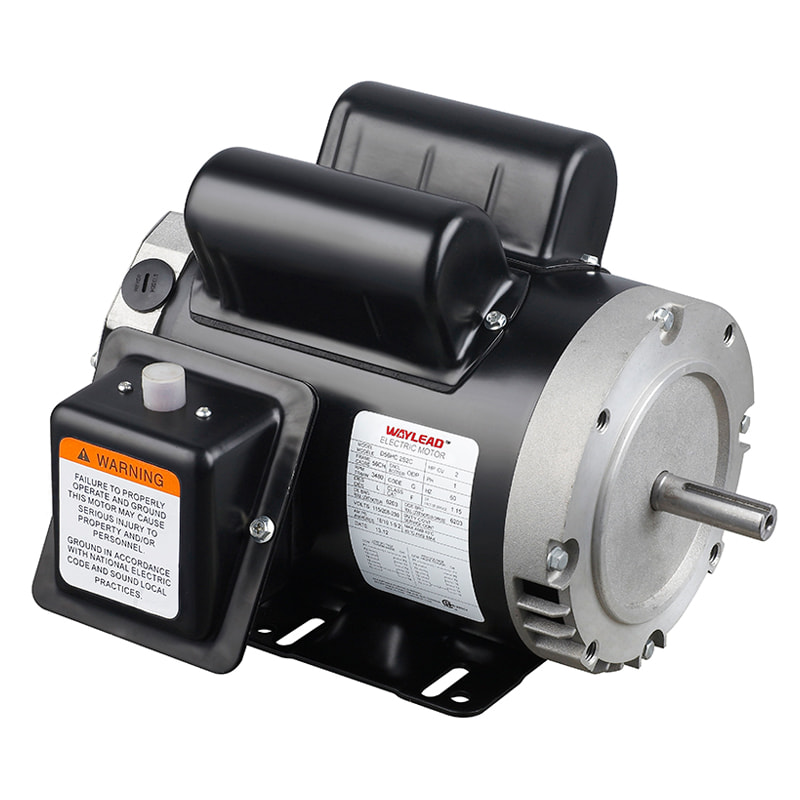

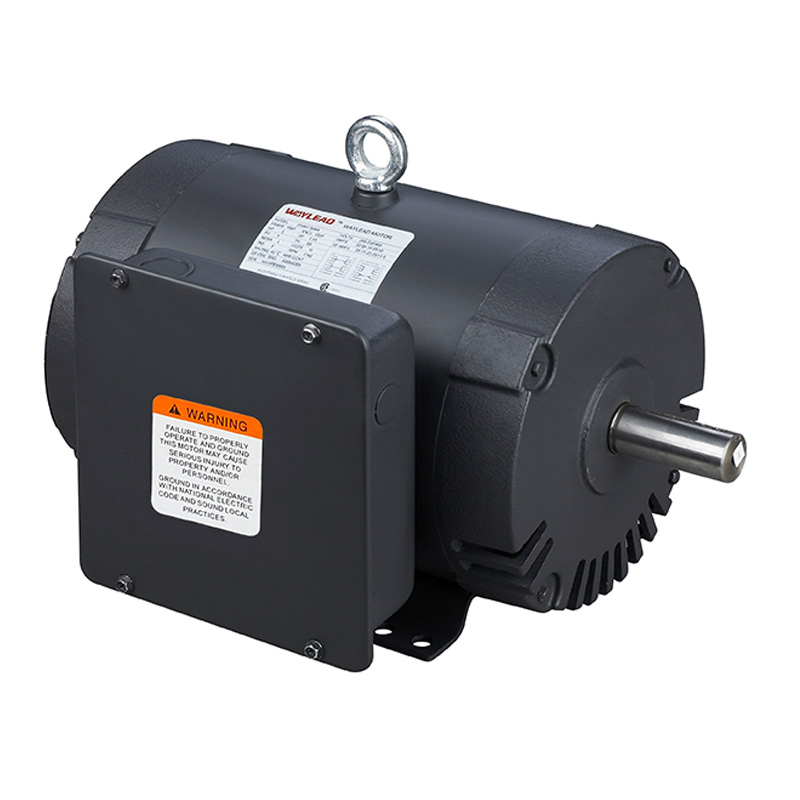

Single-Phase, Dripproof, General Purpose, Capacitor Start & Run Motor

Single-Phase, Dripproof, General Purpose, Capacitor Start & Run Motor

Features:

HP: 1/3-10HP

Pole: 2P, 4P

Frame: 56-215T

Enclosure: ODP

IP Class: IP23

Service Factor: 1.15

Capacitor Start and Capacitor Run

Accept C-face Kit

Accept Manual or Auto Thermal Protector

CSA&CUS,UL certified

Contact Us

Single-Phase, Dripproof, General Purpose, Capacitor Start & Run Motor Details

HP

RPM
60HZ

NEMA
FRAME

Model

Volts

HZ

ENCL.

S.F

Full Load AMPS

WGT.
LBS.

1/3

3600

56

D56 1/3S2C

115/208-230

60

ODP

1.15

4.4/2.25-2.35

23

1800

56

D56 1/3S4C

115/208-230

60

ODP

1.15

4.3/2.3-2.1

24.5

1/2

3600

56

D56 1/2S2C

115/208-230

60

ODP

1.15

6.0/3.06-3.11

24

1800

56

D56 1/2S4C

115/208-230

60

ODP

1.15

5.8/3.0-2.8

25

3/4

3600

56

D56 3/4S2C

115/208-230

60

ODP

1.15

8.1/4.2-4.1

26

1800

56

D56 3/4S4C

115/208-230

60

ODP

1.15

8.27/4^.22

29

1

3600

56

D56 1S2C

115/208-230

60

ODP

1.15

9.66/5.37-5.24

30

1800

56

D56 1S4C

115/208-230

60

ODP

1.15

9.5/4.73^.87

38

1800

143T

D143T1S4C

115/208-230

60

ODP

1.15

11.5/6.0-5.7

41

1.5

3600

56

D56 1.5S2C

115/208-230

60

ODP

1.15

13/6.98-6.58

37

1800

56

D56 1.5S4C

115/208-230

60

ODP

1.15

14.2/7.37-7.23

42

1800

145T

D145T1.5S4C

115/208-230

60

ODP

1.15

15/8.1-7.6

45

2

3600

145T

D145T1.5S2C

115/208-230

60

ODP

1.15

14.5/8.0-7.6

41

3600

56

D56 2S2C

115/208-230

60

ODP

1.15

17.24/8.55-7.96

44

1800

56

D56 2S4C

115/208-230

60

ODP

1.15

18.9/9.96

47

1800

145T

D145T2S4C

115/208-230

60

ODP

1.15

19.0/10-9.3

50

3

3600

145T

D145T2S2C

115/208-230

60

ODP

1.15

18/10.2-9.4

48

3600

56

D56 3S2C

115/208-230

60

ODP

1.15

12.59-11.28/5.97

60

3600

145T

D145T3S2C

115/208-230

60

ODP

1.15

25/14.2-13

67

1800

182T

D182T3S4C

208-230

60

ODP

1.15

13.5-12/6.2

88

5

3600

184T

D184T5S2C

208-230

60

ODP

1.15

22-20/10

95

1800

184T

D184T5S4C

208-230

60

ODP

1.15

22.5-20/10

96

7.5

1800

213T

D213T7.5S4C

208-230

60

ODP

1.15

32.8-30/15.2

153

10

1800

215T

D215T10S4C

208-230

60

ODP

1.15

41.2-39/19.5

190
