Features:
HP: 1/3HP-3HP
Capacitor Start
Frame: 56J
Rolled Steel
NEMA design: N
Service Factor: 1.15
Insulation Class: F(UL approved)
Enclosure: ODP
IP Class: IP23
CSA&CUS,UL certified
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional 56 Frame Dripproof Single-Phase Jet Pump Motor Suppliers and 56 Frame Dripproof Single-Phase Jet Pump Motor company with rich industry experience. We can make "tailor-made" 56 Frame Dripproof Single-Phase Jet Pump Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem 56 Frame Dripproof Single-Phase Jet Pump Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
HZ |
ENCL. |
S.F |
Full Load AMPS |
WGT. |
|
1/3 |
3600 |
56J |
D56J 1/3S2C-C |
115/230 |
60 |
ODP |
1.15 |
6.4/3.5 |
25 |
|
1/2 |
3600 |
56J |
D56J 1/2S2C-C |
115/230 |
60 |
ODP |
1.15 |
7.9/4 |
26 |
|
3/4 |
3600 |
56J |
D56J 3/4S2C-C |
115/230 |
60 |
ODP |
1.15 |
9.6/4.8 |
28 |
|
1 |
3600 |
56J |
D56J 1S2C-C |
115/230 |
60 |
ODP |
1.15 |
11.4/5.8 |
30 |
|
1.5 |
3600 |
56J |
D56J 1.5S2C-C |
115/230 |
60 |
ODP |
1.15 |
15.7/7.8 |
33 |
|
2 |
3600 |
56J |
D56J 2S2C-C |
115/230 |
60 |
ODP |
1.15 |
20.8/10.4 |
47 |
|
3 |
3600 |
56J |
D56J 3S2C-C |
115/230 |
60 |
ODP |
1.15 |
28.5/14.3 |
57 |

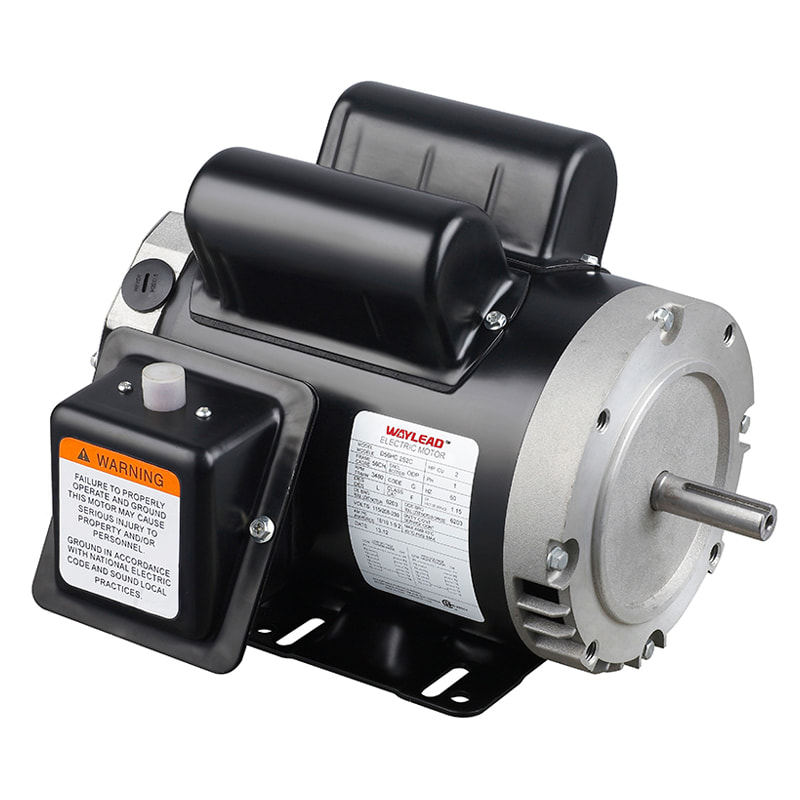

The 56 Frame Dripproof Single-Phase Jet Pump Motor is a purpose-built motor designed for jet pump applications requiring reliable performance in environments where moisture exposure is a concern. Its dripproof enclosure offers protection against falling liquids and particles, distinguishing it from open-frame motors that lack such safeguards. This motor operates on single-phase power, making it suitable for residential, agricultural, and light commercial use where three-phase power is unavailable. With a standardized 56-frame design, it ensures compatibility with a wide range of jet pump systems. The motor’s construction emphasizes durability and efficient heat dissipation, contributing to extended service life and reduced maintenance needs compared to non-dripproof alternatives. The 56 Frame Dripproof Single-Phase Jet Pump Motor combines practical protection with consistent operation, addressing common challenges in water supply and transfer tasks.
Dripproof Enclosure: Designed to prevent liquids and solid particles from entering the motor vertically, ensuring reliability in damp or dusty conditions.
Single-Phase Power Supply: Operates on standard residential voltage (e.g., 115V/230V), enabling easy integration without specialized electrical infrastructure.
56 Frame Standard: Features a NEMA 56-frame configuration for straightforward mounting and interchangeability with compatible jet pumps.
Thermal Protection: Equipped with automatic overload protection to prevent overheating and extend motor lifespan.
Efficient Performance: Optimized for jet pump duties such as water supply, irrigation, and pressure boosting, delivering consistent flow and pressure output.
Durable Construction: Built with robust materials, including corrosion-resistant components, to withstand demanding environments.
Low Maintenance: Sealed bearings and drip-resistant design reduce the need for frequent servicing.
Applications: Ideal for use in domestic water systems, agricultural irrigation, livestock watering, and small-scale industrial fluid transfer.
